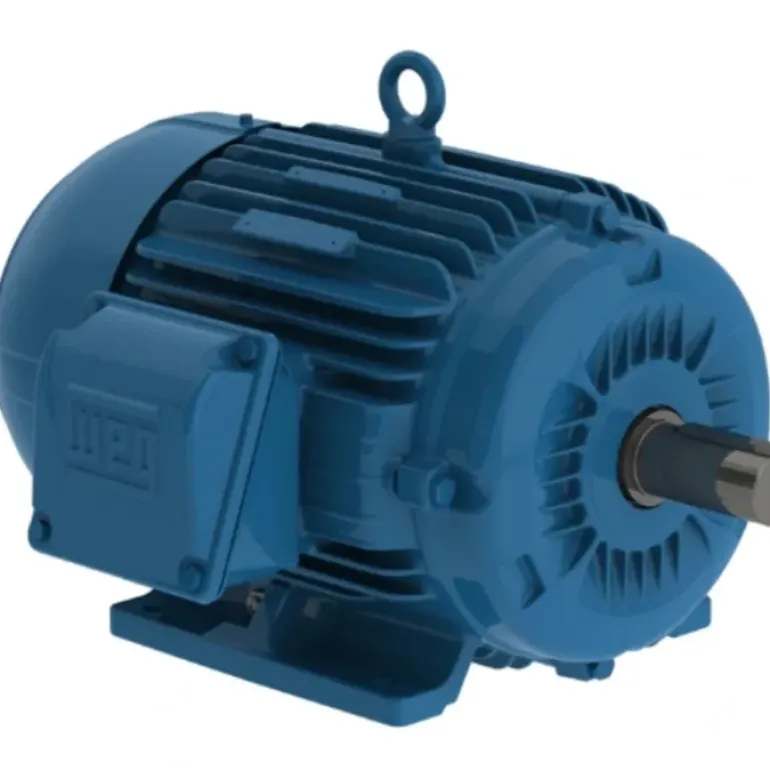

Weg Motors 13769966 W22 NEMA Premium Efficiency 7.5 HP 4P 213/5T 3Ph 230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted-00718ET3E213TF2-W22 – One-stop shop for professional tools and equipment.

Description

Product Description

Weg – 00718ET3E213TF2-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Additional Information

Catalog Number0718ET3E213TF2-W22

StandardNEMA MG-1

Frequency60 Hz

Voltage230/460//380 V

Number of poles4

Degree of ProtectionIP55

Synchronous speed1800 RPM

Output rating7.5 HP

MountingF-2

FlangeWithout

Terminal box¹Right position

EnclosureIC411 – TEFC

Frame213/5T

Output7.5 HP (5.5 kW)

Rated speed1765 RPM

Slip0.0194

Rated voltage230/460 V

Rated current18.4/9.18 A

L. R. Amperes130/65.2 A

LRC7.1x(Code H)

No load current8.80/4.40 A

Rated torque22.3 ft.lb

Locked rotor torque2.2

Breakdown torque3.1

Locked rotor time36s (cold) 20s (hot)

Moment of inertia (J)1.34 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.25

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²58.0 dB(A)

Frame MaterialCast Iron

Impregnation MethodDip and Bake Polyester

Main terminal box holeNPT 1″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingRAL 5009 207A (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialSteel

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capNo-Without Bearing Cap

Balancing Method1/2 Key

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity9

Shaft Locking DeviceWithout
