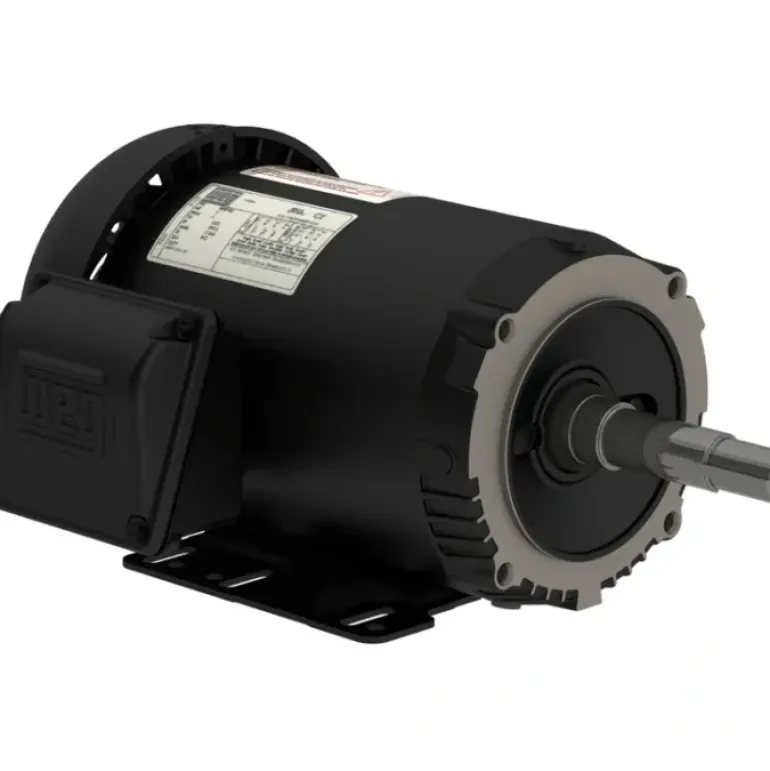

Weg Motors 14391672 Rolled Steel JM Pump NEMA Premium Efficiency 1.5 HP 2P 143/5JM 3Ph 575 V 60 Hz IC411 – TEFC – Foot-mounted- 00156ET3H143JM-SG – One-stop shop for professional tools and equipment.

Description

Product Description

Weg – 00156ET3H143JM-SG The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.

Additional Information

Catalog Number00156ET3H143JM-SG

StandardNEMA MG-1

Frequency60 Hz

Voltage575 V

Number of poles2

Degree of ProtectionIP55

Synchronous speed3600 RPM

Output rating1.5 HP

MountingF-1

FlangeC

Terminal box¹Left position

EnclosureIC411 – TEFC

Frame143/5JM

Output1.5 HP (1.1 kW)

Rated speed3520 RPM

Slip0.0222

Rated voltage575 V

Rated current1.50 A

L. R. Amperes13.6 A

LRC9.1x(Code L)

No load current0.687 A

Rated torque2.24 ft.lb

Locked rotor torque2.29

Breakdown torque3

Locked rotor time30s (cold) 17s (hot)

Moment of inertia (J)0.1023 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.15

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²68.0 dB(A)

Frame MaterialRolled Steel

Impregnation MethodDip and Bake Polyester

Main terminal box hole1.118″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingMunsell N 1 – Matte 207N (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialIndustrial polymer

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capYes- Bearing Cap

Balancing Method1/2 Key

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity6

Bolt MaterialCarbon Steel

Resilient BaseWithout
