Description

Product Description

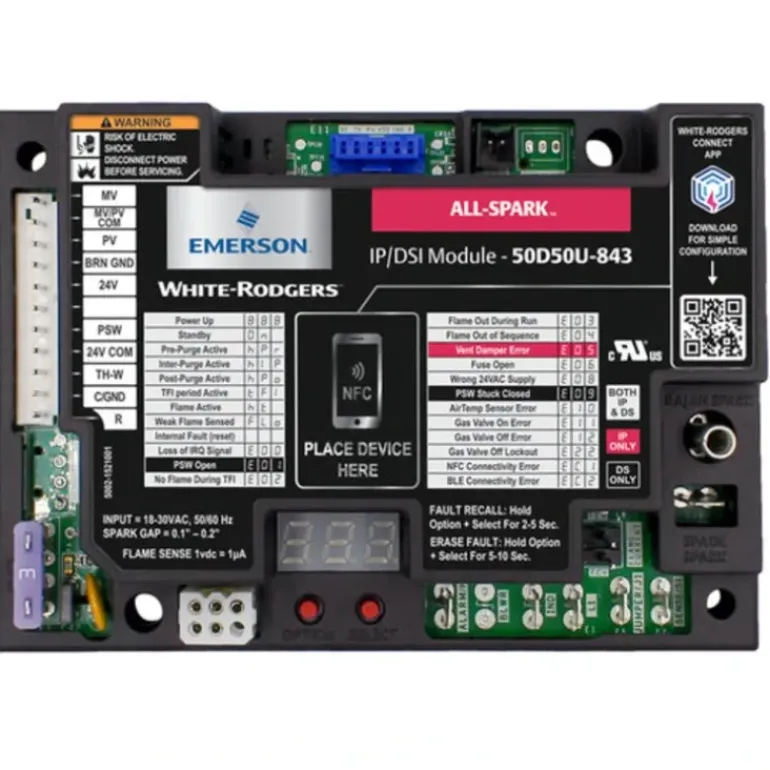

White Rodgers – 50D50U-843 All-Spark universal intermittent pilot/direct spark 24V ignition module. Integrated NFC for configuration and diagnostics using the White-Rodgers Connect app. Replaces over 1000 24V IP + DSI part numbers.

Features:

• Configurable for both 24V intermittent pilot and direct spark ignition modules
• Streamline inventory by replacing over 1000+ 24V IP/DSI part numbers
• Quick configuration without power and simple diagnostics with the White-Rodgers Connect app
• 7-Segment display provides additional configuration options and expanded fault code message reporting
• Rajah and spade spark terminals on-board eliminate the need for an external adapter
• Applications include gas furnaces, water heaters, boilers, cooking and laundry equipment, unit heaters, infrared and tube heaters
• Easy install harness converts old board wiring to fit All-Spark
• Use F67-8535 (sold separately) to maintain temperature without an external thermostat in infrared and tube heaters

Additional Information

Humidity Range5% to 93% relative humidity (non-condensing)

Voltage (Low)24 Vac, 50/60 Hz

Voltage (Line)120 Vac, 50/60 Hz

Temperature Range Ambient Operating-40 degrees to 175 degrees F (-40 degrees to 79 degrees C)
