Description

Product Description

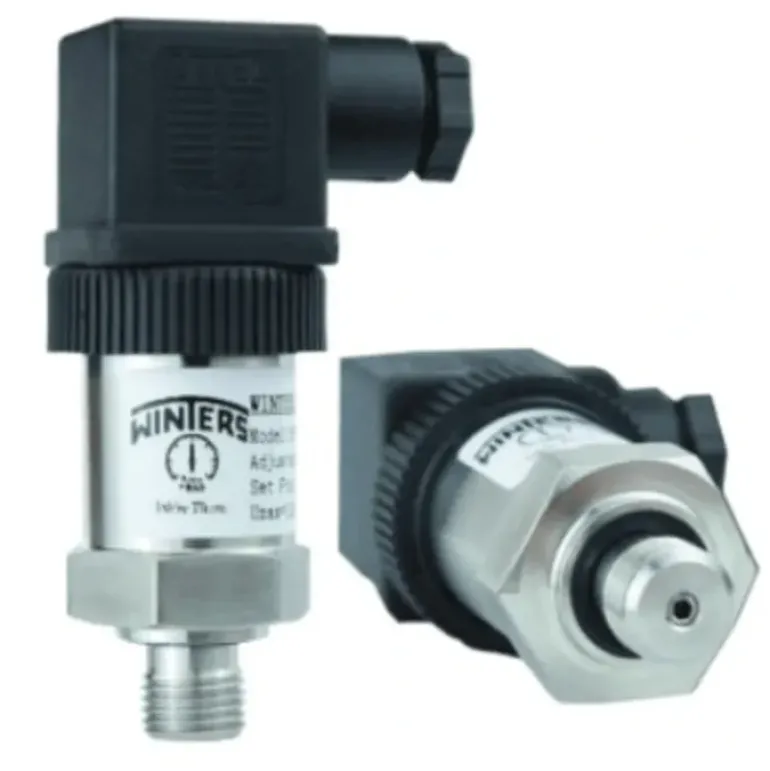

Winters Instruments – 1WPSL124N

Features

• Compact all-purpose pressure switch
• All stainless steel housing with diaphragm or piston actuated sensor
• Wide range of electrical switching outputs
• 1 x SPDT
• IP65 standard, IP67 optional
• Built-in restrictor screw to safeguard against pulsations
• 5-year warranty

Applications

Suitable for all machinery in commercial and industrial sectors

Additional Information

Housing Material304L Stainless Steel

Accuracy2% of full scale

Pressure Connection1/4″ NPT, G1/4″, M14x1.5, M20x1.5

Electrical ConnectionDIN ISO, cable outlet optional

Wetted PartsDiaphragm sensor – NBR, Piston sensor – 304L SS with NBR o-ring

Set Point AdjustmentFactory set or Field selectable

Deadband10-20% of setpoint (fixed)

Contact Rating2A 30VDC; 1A 42VDC; 0.15A 115VDC; 3A 42VAC; 5A 125VAC; 3A 250VAC

Sensor TypeDiaphragm (low pressure) or Piston (high pressure)

Number of Contacts1 X SPDT

Ambient/Process Temperature-4oF to 185oF (-20oC to 85oC)

Enclosure RatingIP65 standard (DIN), IP67 optional (cable leads)

Vibration10g 10-500 Hz, MIL-STD-202F

Shock50g 11 ms, MIL-S-901C

Operating Life1 million cycles

Weight0.22 LBS (0.1 kg)
