Winters Instruments 2WPSA0306F4F201 2Wps General Purpose And Adjustable Deadband Pressure Switch – One-stop shop for professional tools and equipment.

Description

Product Description

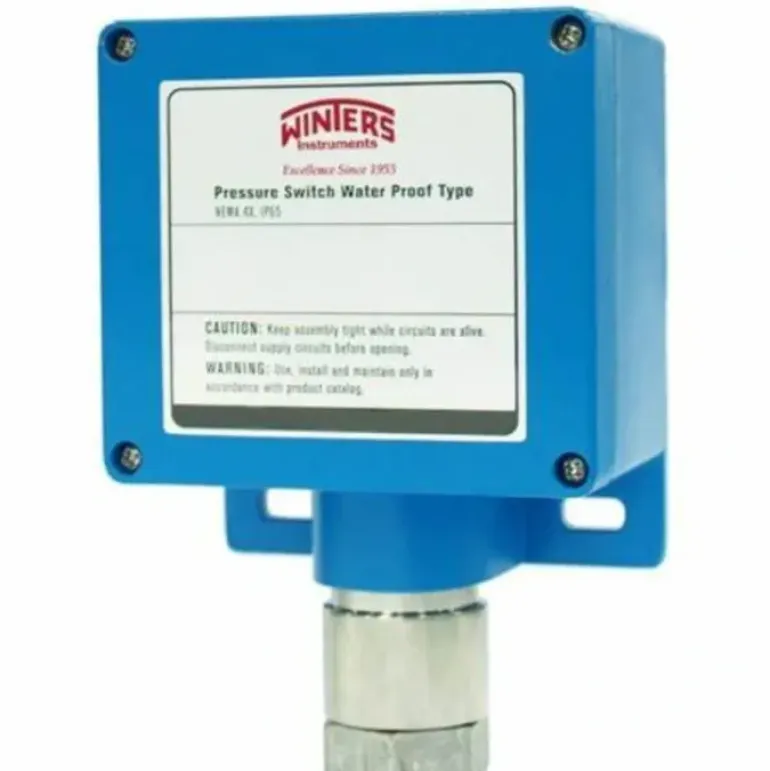

Winters Instruments – 2WPSA0306F4F201

Features

• General Purpose, watertight pressure switch
• Low pressure to 4,000 psi
• High current ratings for 1 x SPDT or 2 x SPDT switches
• Fixed or adjustable deadband options
• Die cast aluminum construction with welded seal
• 1% accuracy
• NEMA 4, 4X IP66 rated
• RU recognized (switch only)
• CRN registration pending
• 5 year warranty

Applications

Suitable for pump and compressor monitoring, HVAC systems and general industrial applications.

Additional Information

HousingHeavy-duty die-cast aluminum, blue colour

Accuracy+/- 1% of the adjustable set-point range

Pressure ConnectionFemale 1/4” or 1/2” NPT, BSP and M20xP1.5

ElectricalFemale 1/2” or 3/4” NPT, M20xP1.5

Wetted Parts16 Stainless Steel welded

Set Point AdjustmentField selectable

DeadbandFixed or Adjustable, see Order Codes below

Contact RatingFixed Deadband:15A @ 125/250VAC, 0.4A @ 125VDC, 3A @ 30VDC Gold contact microswitch, 1A @ 125/250VAC, Adjustable Deadband:20A @ 125/250/480VAC, 5A @ 125VDC

No. of Contacts1 x SPDT or 2 x SPDT (only 1 x SPDT available for Adjustable Deadband range)

Ambient/Process Temperature-30 to 205 deg C (-22 to 400 deg F)

Enclosure RatingRating NEMA 4 4X, IP66, Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion

ApprovalsRU recognized (switch only) file #E12252, CRN registration pending

Weight3.4 lbs (1.54 kg)
