Description

Product Description

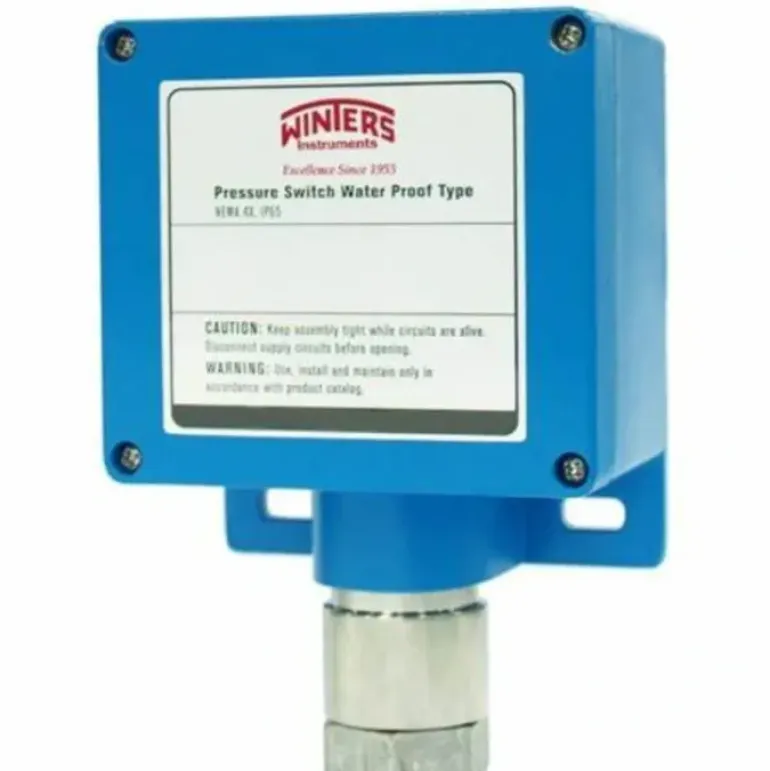

Winters Instruments – 3WPS0306F2F201

Features

• General Purpose, watertight pressure switch
• Vacuum pressure to 10 psi
• High current ratings for 1 x SPDT or 2 x SPDT switches
• Fixed deadband
• Die cast aluminum construction with welded seal
• 1% accuracy
• NEMA 4 4X, IP66 rated
• RU recognized (switch only), file no E12252
• CRN registration pending
• 5 year warranty

Applications

Suitable for pump and compressor monitoring, HVAC systems and general industrial applications

Additional Information

HousingHeavy-duty die-cast aluminum, blue colour

Accuracy+/- 1% of the adjustable set-point range

Pressure Connection1/2” NPT, BSP and M20xP1.5

Electrical ConnectionFemale 1/2” or 3/4” NPT, M20xP1.5

Wetted Parts316 Stainless Steel welded (except for Vacuum range, Viton o-ring)

Set Point AdjustmentField selectable

DeadbandFixed, see Order Codes

Contact Rating15A @ 125/250VAC, 0.4A @ 125VDC, 3A @ 30VDC, Gold contact microswitch 1A @ 125/250VAC

No. of Contacts1 x SPDT or 2 x SPDT

Ambient/Process Temperature-30 to 205 deg C (-22 to 400 deg F), Vacuum range only -5 to 150 deg C (23 to 300 deg F)

Enclosure RatingNEMA 4 4X, IP66, Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion

ApprovalsRU recognized, file #E12252 (switch only), CRN registration pending

Weight3.35 lbs (1.52 kg)
