Winters Instruments D30976 D30 High Pressure Diaphragm Seal – One-stop shop for professional tools and equipment.

Description

Product Description

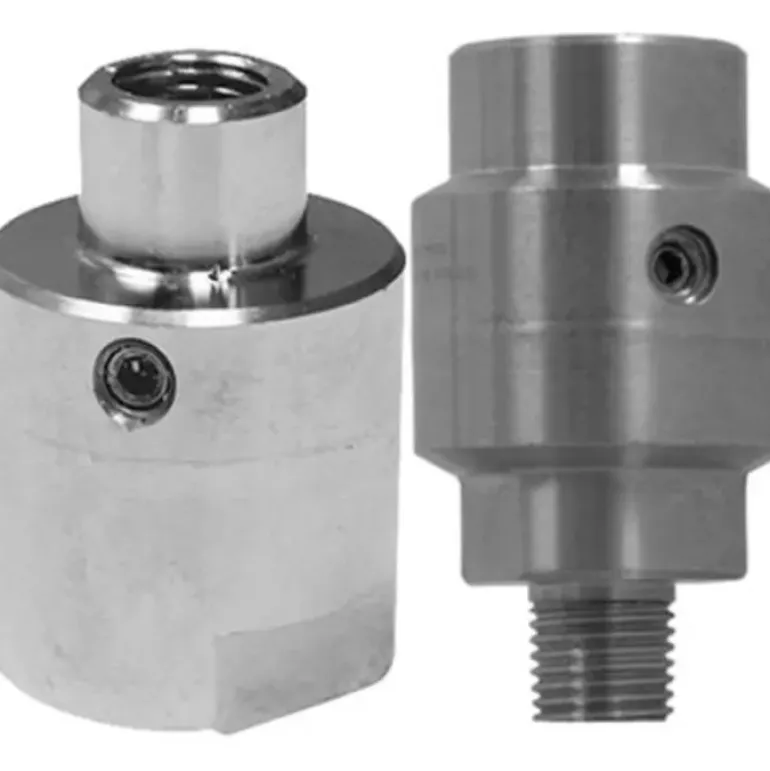

Winters Instruments – D30976

Features

• Compact, lightweight and economical
• Constructed of AISI 316 stainless steel and is welded together into a one piece unit
• ASME B40.100 compliant
• RoHS compliant
• CRN registered
• 5 year warranty

Applications

Offers protection for pressure instruments (gauges and transmitters) from corrosive, contaminated or viscous media|Ideally suited for applications where space limitations exist

Additional Information

HousingAISI 316 SS

DiaphragmAISI 316L SS, welded

Minimum Operating Pressure1,000 psi (6,900 kPa)

Maximum Operating Pressure6,000 psi (41,300 kPa)

Gauge Connection1/4” NPTF

Process Connection1/4” NPTF or NPTM

Process Temperature-49°F to 302°F (-45°C to 150°C)
