Description

Product Description

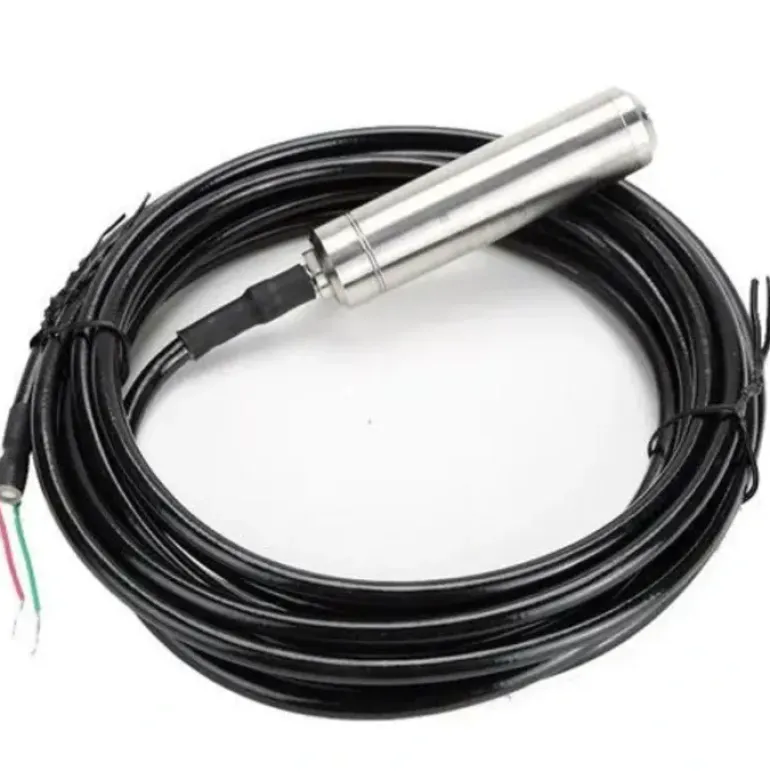

Winters Instruments – LM61PR3S3GS16SCL6

Features

• Designed for continuous level measurement in clean water, reservoirs and treatment plants
• Rugged stainless steel housing and highly accurate stainless steel sensor
• PUR vented cable in various lengths
• Available ranges from Inches of Water up to 300 psi
• ±0.35% accuracy standard, ±0.25% optional
• IP68 rated for full submersion and continous measurement
• CE mark and RoHS compliant
• 5 year warranty

Applications

Appropriate for all level and depth measurement applications including open tanks, ground water, reservoirs and water treatment facilities

Additional Information

Output Signal4…20 mA, 2-wire / Vs

Accuracy±0.35% Full Scale Output, ±0.25% FSO optional

Load ResistanceRL

Long Term Stability0.1% Full Scale per year

Response Time1 ms

Storage Temperature-40 to 85 deg C (-40 to 185 deg F)

Media Temperature0 to 85 deg C (32 to 185 deg F)

Insulation Resistance100 MΩ @ 250 VDC

Reverse Polarity ProtectionYes

Lightning ProtectionYes

Electromagnetic ProtectionIEC 61000

Enclosure RatingIP68 for full submersion and continuous measurement

Housing1Cr18Ni9Ti

Wetted Parts316L welded sensor

Long Term Stability±0.1% FSO (typically per year)

Operation Life1 million cycles, minimum
