Winters Instruments LXP023XN4 Lxp Explosion Proof Pressure Transmitter – One-stop shop for professional tools and equipment.

Description

Product Description

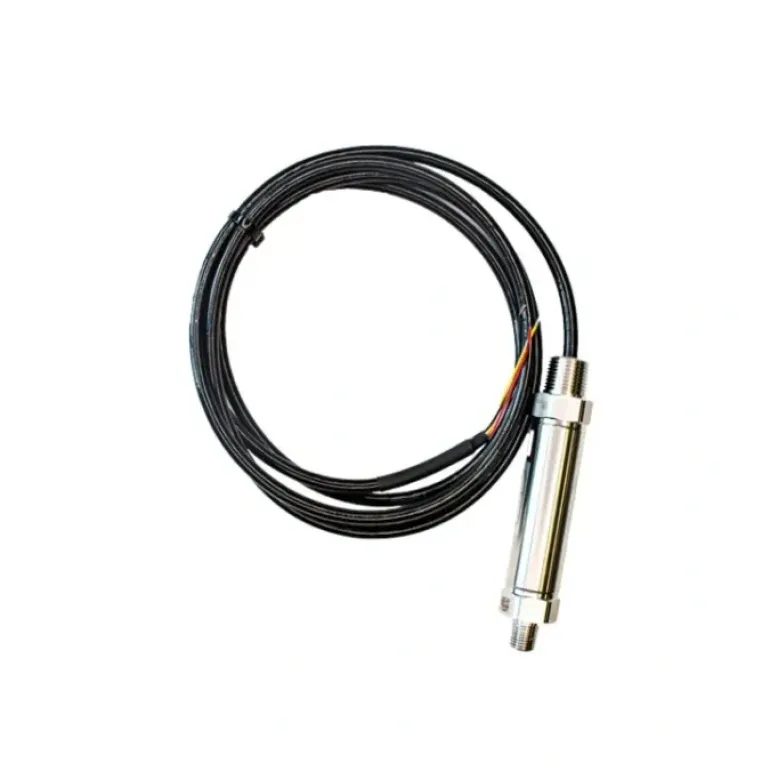

Winters Instruments – LXP023XN4

Features

• Microprocessor-based high performing transmitter
• Explosion proof smart pressure transmitter for hazardous locations
• Rugged stainless steel construction with silicone sensing technology
• 0.1%, 0.2% or 0.5% accuracy • Digital HART or Modbus communications
• cCSAus approved for hazardous locations (up to 10,000 psi)
• 5 NACE compliant for sour gas applications
• Single seal ANSI compliance pending • CRN registered
• 5 year warranty

Applications

• Suitable for a variety of hazardous and smart pressure transmitterinstallations including petrochemical plants, pipelines, fuel transfer systemsand power plants
• Any hazardous location requiring high performance pressure monitoring

Additional Information

Output Signal4/20 mA, 2-wire / V

Accuracy0.2% URL standard, 0.1% and 0.5% optional

Stability0.1% URL per year

Temperature RangesWorking temperature: -40/85 deg C, -40/185 deg F Storage temperature: -40/110 deg C, -40/230 deg F Media temperature: Silicone oil -30/80 deg C (-22/176 deg F)

Working Humidity0-95 %

Pressure Connection1/4″ or 1/2″ NPT M,1/4″ or 1/2″ G M or M20

HousingAll stainless steel construction including welded seal

Wetted Parts316L, NACE compliant stainless steel

Overload Pressure1.5 x rated pressure

Power Consumption – 500 mW (20.8 mA output @ 24 VDC)

Vibration10 g, 25…2,000 Hz

Shock500 g, 1 ms

Protection ClassEMI, ESD, RFI protection – Surge immunity IEC61000-4-5

ApprovalsCSA for USA Canada (up to 6,000 psi) – Class I Division 1 Group A, B, C D T6 / Class II Division 1 Group E, F G T80 deg C / Class III CRN Registered

Protection ClassIP67 standard

Weight0.95 lbs (0.43 kg)

Operational Life10 million cycles
