Description

Product Description

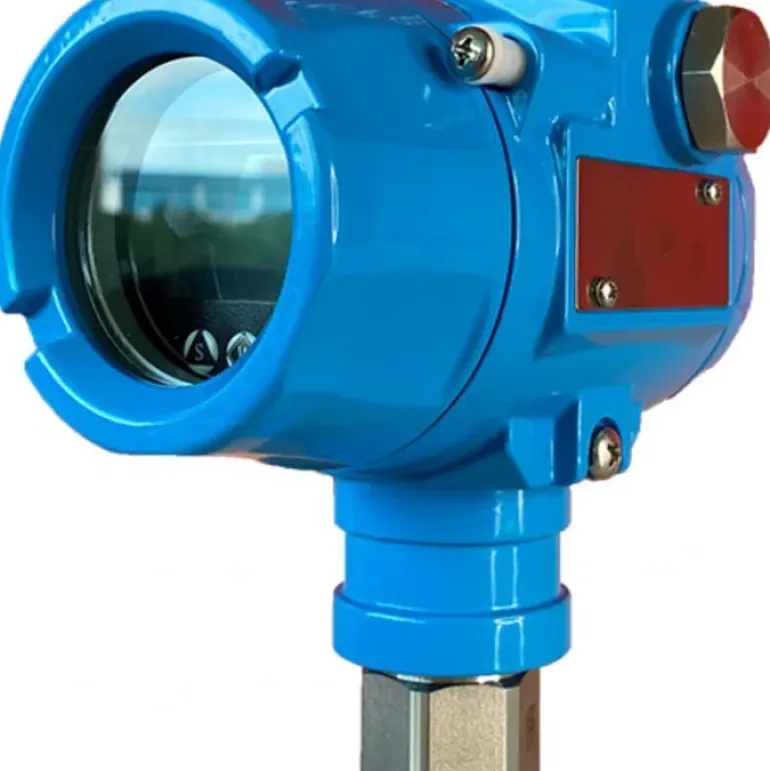

Winters Instruments – LY16P02HX

Features

• Microprocessor-based high performing transmitter
• Explosion-proof smart pressure transmitter for hazardous locations
• Sour gas NACE0175 compliant,Built-in temperature sensor
• 0.2% standard; 0.5%, 0.1%, 0.075% or 0.05% optional
• Simple to operate 3-push button control,HART® or Modbus communications are available
• Low power option available,Re-zero function for safe field calibration,10:1 rangeability allows for installation in any application,
• CRN Registered, up to 6,000 psi
• 5-year warranty

Applications

Pressure monitoring for oil and gas, well head process control, petrochemical installations, power generation equipment and all hazardous locations

Additional Information

Output Signal4/20 mA, 2-wire / V

LCD DisplayLCD display (standard) or without LCD display (optional)

Accuracy 0.2% standard; 0.5%, 0.1%, 0.075% or 0.05% optional

Stability0.1% per year

Temperature RangeWorking: -40/85°C (with display -20/70°C), -40/185°F (without display -4/158°F), Storage: -40/110°C (with display -40/85°C), -40/230°F (without display -40/185°F), Media: silicone oil filling: -40/120°C (-40/248°F)

Working Humidity5-100% at 40°C (104°F)

Pressure Connection1/4” or 1/2” NPTM or F, 1/4” or 1/2” GM (large 10mm orifice)

HousingRugged die-cast aluminum housing, painted blue

Wetted Parts316L SS

Overload Pressure1.5 x rated pressure

Power Consumption

Wake-Up Time6 seconds

Vibration20g, 20Hz…5kHz, According to GB/T 1827.3 / IEC 61298-3 tests, 0.1% URL

Shock20g, 20Hz…5kHz

Available Pressure UnitskPa, Mpa, bar, psi, mmHg, mmH2O, mH2O, inH2O, ftH2O, inHg, mHg, TORR, mbar, g/cm2, kg/cm2, Pa, ATM

Available Temperature UnitsCelsius, Fahrenheit

Protection ClassEMI, ESD, RFI, reverse polarity protected; Surge protection IEC1000-4-5

ApprovalsCSA, for USA Canada, Class I, Division 1, Group A,B,C and D T6

Protection ClassIP66 / IP67

Weight2.9 lbs (1.3 kg)

Operational Life100 million cycles
