Description

Product Description

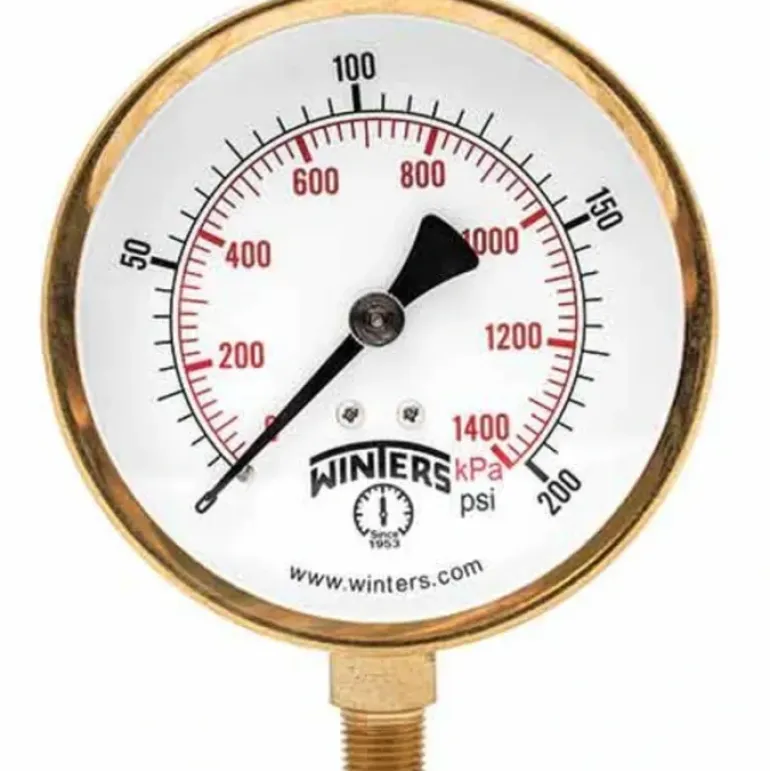

Winters Instruments – P3S6216

Features

• Heavy duty, highly accurate aluminum case gauge
• ±0.5% accuracy
• Brass or stainless steel internals
• Large, easy-to-read dial
• StabiliZR®️ dampened movement available on 4.5″ (115mm) dial size
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

• Intended for non-clogging installations
• Use on air, steam, oil, fresh water
• Boilers, control rooms and chillers

Additional Information

Dial (For Stainless Steel Internals)4.5” (115mm), 6” (150mm), 8.5” (215mm) and 10” (250mm) white aluminum with black and red markings

Case (For Stainless Steel Internals)Aluminum painted black

Front Flange (For Stainless Steel Internals)4.5” (115mm), 6” (150mm): SS, polished, 8.5” (215mm), 10” (250mm): Aluminum painted black

Back Flange (For Stainless Steel Internals)4.5” (115mm), 6” (150mm): Steel, painted black (optional), 8.5” (215mm), 10” (250mm): Aluminum, painted black

Lens (For Stainless Steel Internals)4.5” (115mm), 6” (150mm): Glass, 8.5” (200mm), 10” (250mm): Polycarbonate

Ring (For Stainless Steel Internals)4.5” (115mm), 6” (150mm): SS, polished, 8.5” (215mm), 10” (250 mm): Aluminum

Socket (For Stainless Steel Internals)316L SS

Connection (For Stainless Steel Internals)1/4” NPT for ranges up to 600 psi (4,137 kPa), 1/2” NPT for ranges over 600 psi (4,137 kPa)

Bourdon Tube (For Stainless Steel Internals)316L SS

Movement (For Stainless Steel Internals)304 SS

Pointer (For Stainless Steel Internals)Aluminum, anodized black, micrometer adjustable

Welding (For Stainless Steel Internals)316L SS TIG Argonarc

Over-Pressure Limit (For Stainless Steel Internals)30% for pressures up to 600 psi (4,137 kPa), 25% for pressures over 600 psi to 1,400 psi (4,137 kPa to 9,653 kPa), 15% for pressures over 1,400 psi (9,653 kPa)

Working Pressure (For Stainless Steel Internals)Maximum 75% of full scale value

Ambient/Process Temperature (For Stainless Steel Internals)-40°F to 150°F (-40°C to 65°C)

Accuracy (For Stainless Steel Internals)±0.5% ANSI/ASME Grade 2A

Enclosure Rating (For Stainless Steel Internals)IP52

Warning (For Stainless Steel Internals)N/A

Dial (For Brass Internals)4.5” (115mm), 6” (150mm), 8.5” (215mm) and 10” (250mm) white aluminum with black and red markings

Case (For Brass Internals)Aluminum painted black

Front Flange (For Brass Internals)4.5” (115mm), 6” (150mm): SS, polished, 8.5” (215mm), 10” (250mm): Aluminum painted black

Back Flange (For Brass Internals)4.5” (115mm), 6” (150mm): Steel, painted black (optional), 8.5” (215mm), 10” (250mm): Aluminum, painted black

Lens (For Brass Internals)4.5” (115mm), 6” (150mm): Glass, 8.5” (200mm), 10” (250mm): Polycarbonate

Ring (For Brass Internals)4.5” (115mm), 6” (150mm): SS, polished, 8.5” (215mm), 10” (250 mm): Aluminum

Socket (For Brass Internals)Brass

Connection (For Brass Internals)1/4” NPT for ranges up to 600 psi (4,137 kPa), 1/2” NPT for ranges over 600 psi (4,137 kPa)

Bourdon Tube (For Brass Internals)Phosphor bronze for ranges up to 600 psi (4,137 kPa), 316L SS for ranges over 600 psi (4,137 kPa)

Movement (For Brass Internals)Brass

Pointer (For Brass Internals)Aluminum, anodized black, micrometer adjustable

Welding (For Brass Internals)Tin/copper alloy for ranges up to 600 psi (4,137 kPa), Silver alloy for ranges over 600 psi (4,137 kPa)

Over-Pressure Limit (For Brass Internals)30% for pressures up to 600 psi (4,137 kPa), 25% for pressures over 600 psi to 1,400 psi (4,137 kPa to 9,653 kPa), 15% for pressures over 1,400 psi (9,653 kPa)

Working Pressure (For Brass Internals)Maximum 75% of full scale value

Ambient/Process Temperature (For Brass Internals)-40°F to 150°F (-40°C to 65°C)

Accuracy (For Brass Internals)±0.5% ANSI/ASME Grade 2A

Enclosure Rating (For Brass Internals)IP52

Warning (For Brass Internals)Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
