Description

Product Description

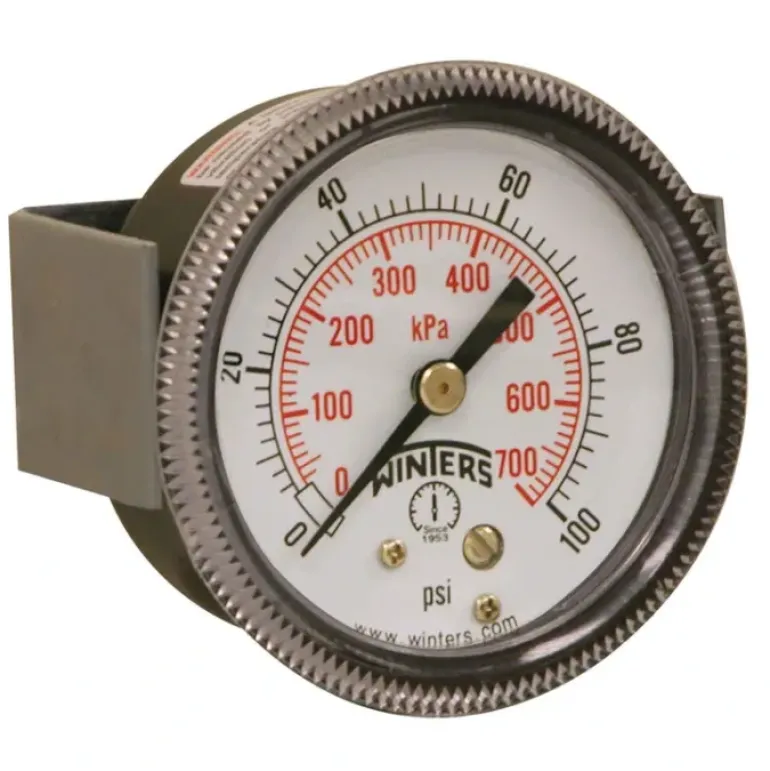

Winters Instruments – P9U901407UC

Features

• General purpose panel mounted gauge with 1.5” (40mm) to 3.5” (90mm) dial sizes
• Flutterless pointer
• Dampened movement
• Removable lens
• Zero-adjustment
• ±2-1-2% accuracy
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

Panels, compressor equipment, water and oil pumps, where rapid pressure fluctuations or system vibration require a stable pointer

Additional Information

Dial1.5” (40mm), 2” (50mm), 2.5” (63mm), 3.5” (90mm), white aluminum with black and red markings

CaseSteel, painted black

LensAcrylic, threaded

SocketBrass

Connection1/8” NPT or 1/4” NPT standard

Bourdon TubePhosphor bronze

MovementBrass (flutterless movement)

PointerAluminum, black

WeldingSilver alloy

Over-Pressure Limit25% of full scale value

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)

Accuracy±2-1-2% ANSI/ASME Grade A

Enclosure RatingIP52
