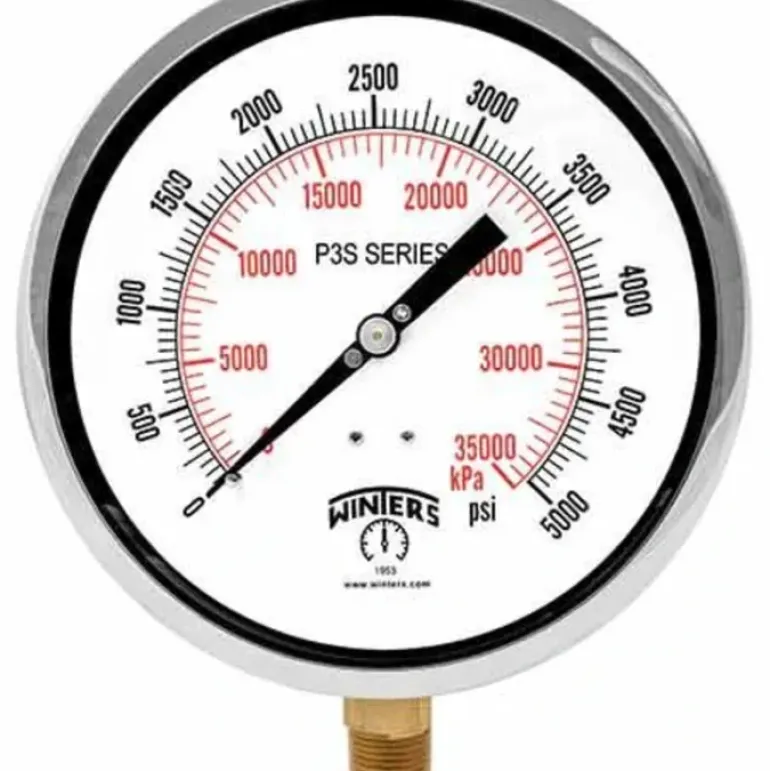

Winters Instruments – PAM1697

Features

• To measure pressure and temperature of most ammonia systems
• ±0.5% to ±3-2-3% accuracy available
• 2.5” (63mm) to 10” (250mm) dial sizes
• ASME B40.100 compliant
• RoHS compliant (SS internals only)
• CRN registered
• 5 year warranty
• BUY NOW CANADA
• BUY NOW USA
• DOCUMENTATION:

Applications

Used to display pressure and temperature on refrigeration systems

Additional Information

Dial (Accuracy: ±0.5% to ±1%)4” (100mm), 6” (150mm), 8.5” (215mm), 10” (250mm): White aluminum with black and red markings

Case (Accuracy: ±0.5% to ±1%)4” (100mm), 6” (150mm): AISI 304 SS, 8.5” (215mm), 10” (250mm): Aluminum case

Lens (Accuracy: ±0.5% to ±1%)Polycarbonate

Ring (Accuracy: ±0.5% to ±1%)4” (100mm), 6” (150mm): 304 SS, 8.5” (215mm), 10” (250mm): Aluminum

Socket (Accuracy: ±0.5% to ±1%)316L SS

Connection (Accuracy: ±0.5% to ±1%)1/4” NPT

Bourdon Tube (Accuracy: ±0.5% to ±1%)316L SS, drawn seamless

Movement (Accuracy: ±0.5% to ±1%)304 SS

Pointer (Accuracy: ±0.5% to ±1%)Aluminum, anodized black, micrometer adjustable

Welding (Accuracy: ±0.5% to ±1%)TIG

Over-pressure Limit (Accuracy: ±0.5% to ±1%)30% of full scale value

Working Pressure (Accuracy: ±0.5% to ±1%)Maximum 75% of full scale value

Ambient/Process Temperature (Accuracy: ±0.5% to ±1%)Dry: -40°F to 150°F (-40°C to 65°C), Glycerin filled: -4°F to 150°F (-20°C to 65°C)

Accuracy (Accuracy: ±0.5% to ±1%)4” (100mm), 6” (150mm): ±1%ANSI/ASME Grade 1A, 8.5” (215mm), 10” (250mm): ±0.5% ANSI/ASME Grade 2A

Enclosure Rating (Accuracy: ±0.5% to ±1%)2.5” (63mm), 4” (100mm), 6” (150mm): IP65, 8.5” (215mm), 10” (250mm): IP52

Dial (Accuracy: ±1.5%)2.5” (63mm), 3.5” (90mm), 4” (100mm): White aluminum with black and red markings

Case (Accuracy: ±1.5%)2.5” (63mm), 4” (100mm): AISI 304 SS, 3.5” (90mm): Steel, painted black

Lens (Accuracy: ±1.5%)Polycarbonate

Ring (Accuracy: ±1.5%)2.5” (63mm), 4″ (100mm): 304 SS, 3.5” (90mm): Steel painted black

Socket (Accuracy: ±1.5%)316L SS

Connection (Accuracy: ±1.5%)1/4” NPT standard

Bourdon Tube (Accuracy: ±1.5%)316L SS, drawn seamless

Movement (Accuracy: ±1.5%)304 SS

Pointer (Accuracy: ±1.5%)Aluminum, anodized black

Welding (Accuracy: ±1.5%)TIG

Over-pressure Limit (Accuracy: ±1.5%)30% of full scale value

Working Pressure (Accuracy: ±1.5%)Maximum 75% of full scale value

Ambient/Process Temperature (Accuracy: ±1.5%)Dry: -40°F to 150°F (-40°C to 65°C), Glycerin filled: -4°F to 150°F (-20°C to 65°C)

Accuracy (Accuracy: ±1.5%)±1.5% of full scale

Enclosure Rating (Accuracy: ±1.5%)IP65

Dial (Accuracy: ±3-2-3%)2.5” (63mm), 4” (100mm): White aluminum with black and red markings

Case (Accuracy: ±3-2-3%)2.5” (63mm), 4” (100mm): Steel, painted black

Lens (Accuracy: ±3-2-3%)Polycarbonate

Ring (Accuracy: ±3-2-3%)2.5” (63mm), 4″ (100mm): Steel, painted black

Socket (Accuracy: ±3-2-3%)2.5” (63mm): Steel, 4” (100mm): Nickel plated steel

Connection (Accuracy: ±3-2-3%)1/4” NPT standard

Bourdon Tube (Accuracy: ±3-2-3%)316 SS

Movement (Accuracy: ±3-2-3%)304 SS

Pointer (Accuracy: ±3-2-3%)Aluminum, anodized black

Welding (Accuracy: ±3-2-3%)TIG

Over-pressure Limit (Accuracy: ±3-2-3%)30% of full scale value

Working Pressure (Accuracy: ±3-2-3%)Maximum 75% of full scale value

Ambient/Process Temperature (Accuracy: ±3-2-3%)Dry: -40°F to 150°F (-40°C to 65°C)

Accuracy (Accuracy: ±3-2-3%)±3-2-3% ANSI/ASME Grade B

Enclosure Rating (Accuracy: ±3-2-3%)IP52
