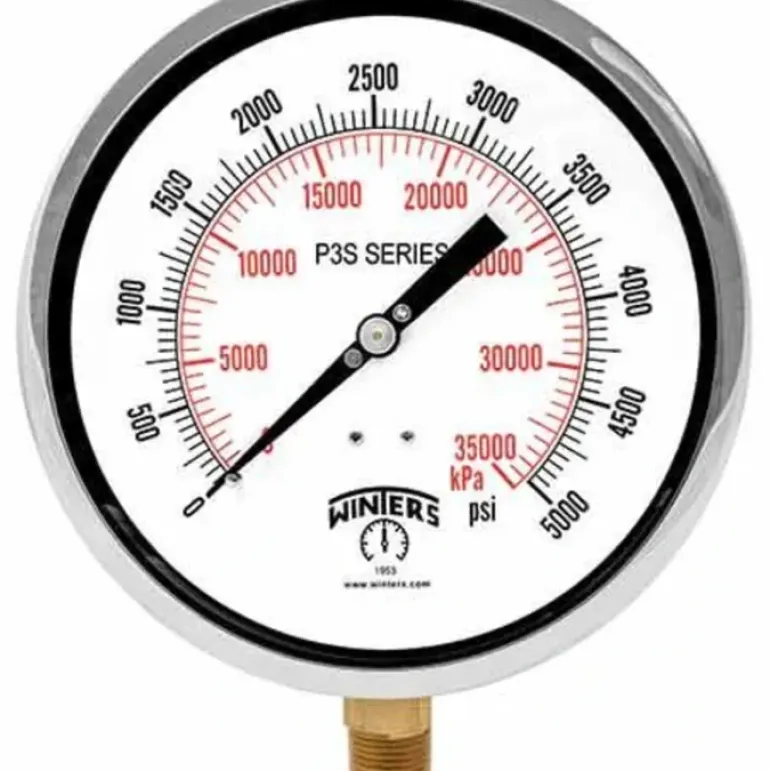

Winters Instruments – PCC629C

Features

• Unique pressure instrument utilizing colour coded cases for easy identification of processes
• 4 different colours that are UV resistant and will not fade
• Stainless steel or brass internals, liquid fillable
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

Used for easy identification of process or pressure|Well suited for use where heavy vibration or pulsation exist|Used on machinery, process lines, compressors, hydraulics

Additional Information

Dial (For Stainless Steel Internals)4” (100mm) white aluminum with black and red markings

Case (For Stainless Steel Internals)PBT Polybutylene terephthalate – colour coded

Lens (For Stainless Steel Internals)Polycarbonate

Ring (For Stainless Steel Internals)PBT Polybutylene terephthalate – colour coded

Socket (For Stainless Steel Internals)316L SS

Connection (For Stainless Steel Internals)1/4” NPT or 1/2” NPT standard

Bourdon Tube (For Stainless Steel Internals)316L SS, drawn seamless

Movement (For Stainless Steel Internals)304 SS

Pointer (For Stainless Steel Internals)Aluminum, anodized black, micrometer adjustable

Welding (For Stainless Steel Internals)TIG, silver alloy

Over-Pressure Limit (For Stainless Steel Internals)30% for pressures up to 600 psi (4,137 kPa), 15% for pressures over 600 psi (4,137 kPa)

Gasket Material (For Stainless Steel Internals)EPDM

Working Pressure (For Stainless Steel Internals)Maximum 75% of full scale value

Ambient/Process Temperature (For Stainless Steel Internals)Dry: -40°F to 200°F (-40°C to 93°C), Glycerin Filled: -40°F to 150°F (-40°C to 65°C)

Accuracy (For Stainless Steel Internals)±1% ANSI/ASME Grade 1A

Enclosure Rating (For Stainless Steel Internals)IP65 per EN60529-1 (IEC529-1)

Warning (For Stainless Steel Internals)N/A

Dial (For Brass Internals)4” (100mm) white aluminum with black and red markings

Case (For Brass Internals)PBT Polybutylene terephthalate – colour coded

Lens (For Brass Internals)Polycarbonate

Ring (For Brass Internals)PBT Polybutylene terephthalate – colour coded

Socket (For Brass Internals)OT 58 brass

Connection (For Brass Internals)1/4” NPT or 1/2” NPT standard

Bourdon Tube (For Brass Internals)Phosphor bronze

Movement (For Brass Internals)Gears are OT 59 brass, plates are AISI 304 SS

Pointer (For Brass Internals)Aluminum, anodized black

Welding (For Brass Internals)Tin/copper alloy for pressures up to 600 psi (4,137 kPa), Silver alloy for pressures over 600 psi (4.137 kPa)

Over-Pressure Limit (For Brass Internals)25% for pressures up to 1,400 psi (9,653 kPa), 15% for pressures over 1,400 psi (9,653 kPa)

Gasket Material (For Brass Internals)Silicone rubber for socket, EPDM for lens, filling plug and blow-out vent

Working Pressure (For Brass Internals)Maximum 75% of full scale value

Ambient/Process Temperature (For Brass Internals)Dry: -40°F to 200°F (-40°C to 93°C), Glycerin Filled: -40°F to 150°F (-40°C to 65°C)

Accuracy (For Brass Internals)±1% ANSI/ASME Grade 1A

Enclosure Rating (For Brass Internals)IP65 per EN60529-1 (IEC529-1)

Warning (brass internals only) (For Brass Internals) Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
