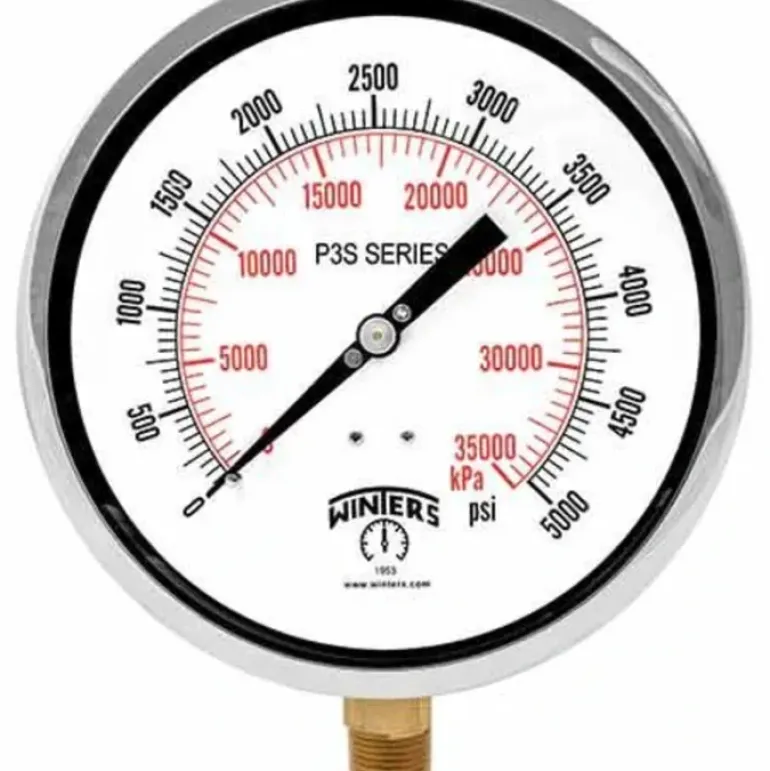

Winters Instruments – PDT8077B

Features

• Brass or stainless steel wetted parts
• Both conventional and balanced scale available
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

Single pointer to show difference from two pressure sources|Typically used to measure pressure drops across a filter, pump or other equipment

Additional Information

Dial4.5” (115mm), 6” (150mm) white aluminum with black markings

CaseAluminum, painted black

Front FlangeSS

Back FlangeBlack steel

LensGlass

Ring4.5” (115mm): SS, 6“ (150mm): Aluminum

SocketBrass or 316 SS

Connections1/4” NPT standard

ScalePSID only

Bourdon TubesPhosphor bronze or AISI 316 SS, independent, matched

MovementBrass

PointerAluminum (micrometer)

WeldingTin/copper alloy for brass internals, TIG argonarc for SS internals

Over-Pressure Limit30% of full scale value

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)

Accuracy±1% ANSI/ASME Grade 1A
