Winters Instruments PETM213 Pet Economy Test Gauge/ Pet-Lf Lead Free Economy Test Gauge – One-stop shop for professional tools and equipment.

Description

Product Description

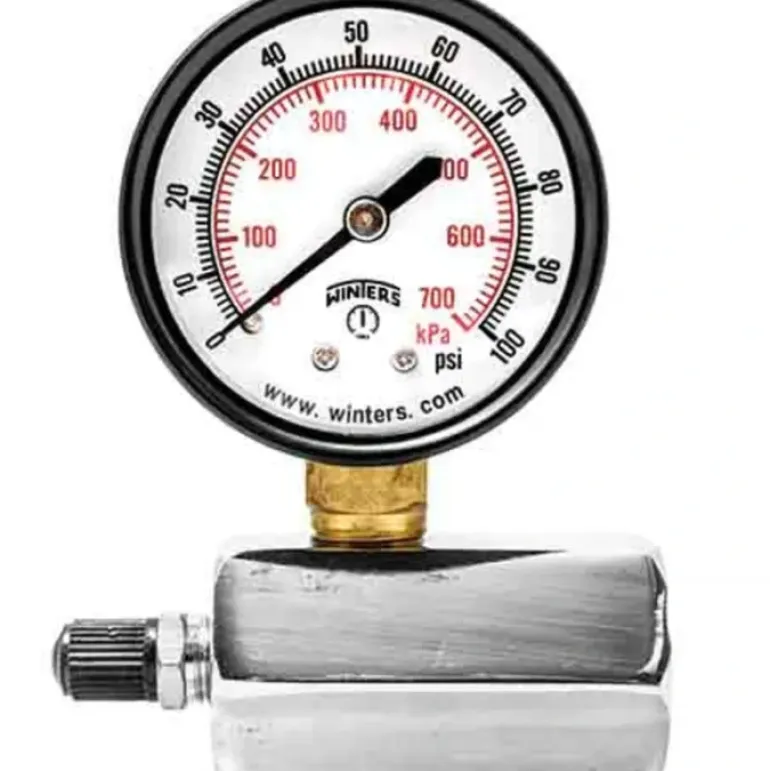

Winters Instruments – PETM213

Features

• Economical pressure gauge and valve body assembly used for pressure testing
• Bleed port and plated housing on the gas test assembly
• Swivel hose adaptor on the Water Test Gauge
• Black steel case
• Brass or lead free brass wetted parts
• Dual scale (PSI/kPa)
• ±3-2-3% accuracy
• ASME B40.100 compliant
• CRN registered
• Lead free version NSF-61-372 certified
• 5 year warranty

Applications

Residential commercial pressure testing of gas, air and water lines

Additional Information

Dial2″ (50mm), 2.5″ (63mm) white aluminum with black and red markings

CaseSteel painted black

LensPETG: Polycarbonate, PETM, PETM-LF, PETW, PETW-LF: Acrylic

RingSteel, painted black

Bourdon TubePET: Phosphor bronze, PET-LF: Lead free phosphor bronze, NSF-61-372 certified

MovementPET: Brass, PET-LF: Lead-Free brass, NSF-61-372 certified

PointerAluminum, black

ConnectionPETG: 3/4” NPTF, PETM, PETM-LF, PETW, PETW-LF: 3/4” female swivel hose connection

Maximum PointerAvailable on Water Test Gauge only

Welding#50 tin solder

Gas Test Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)

Water Test Ambient/Process Temperature 32°F to 150°F (0°C to 65°C)

Working Pressure Maximum 75% of full scale value

Accuracy ±3-2-3% ANSI/ASME Grade B

Enclosure Rating IP52

WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
