Description

Product Description

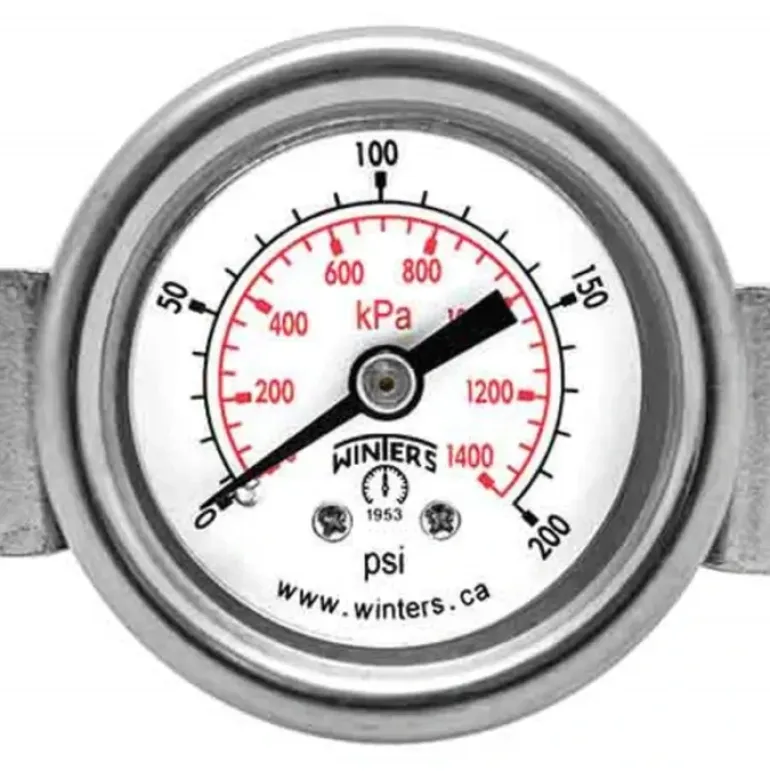

Winters Instruments – PEU1406UC

Features

• Most economical pressure gauge used for panels
• 1.5” (40mm) to 2.5” (63mm) dial sizes
• Black steel case
• Brass wetted parts
• Stainless steel crimp-on bezel
• Stud-style U-Clamp design for secure panel mounting
• ±3-2-3% accuracy
• Dual scale (psi/kPa)
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

For measuring gases, air, water and oils when equipment or processes require an economical panel mounted gauge

Additional Information

Dial1.5” (40mm), 2” (50mm), 2.5” (63mm) white aluminum with black and red markings

CaseSteel, painted black

LensPolycarbonate

RingSS

SocketBrass

Connection1/8” NPT or 1/4” NPT standard

Bourdon TubePhosphor bronze

MovementBrass

PointerAluminum, black

WeldingSilver alloy

Over-Pressure Limit25% of full scale value

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)

Accuracy±3-2-3% ANSI/ASME Grade B

Enclosure RatingIP52
