Winters Instruments PFD40010 Pfd Winair Differential Pressure Gauge – One-stop shop for professional tools and equipment.

Description

Product Description

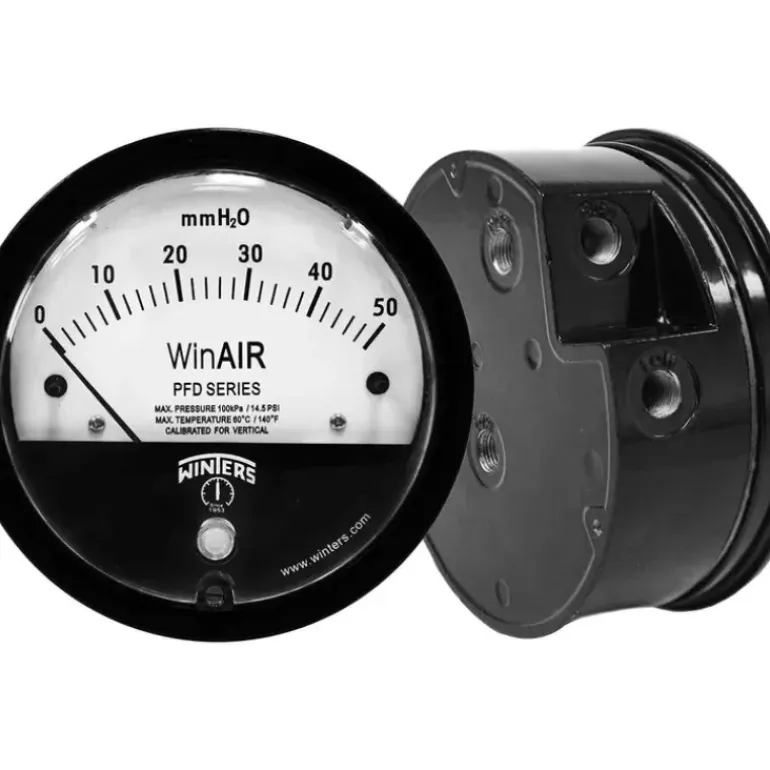

Winters Instruments – PFD40010

Features

• Resistance-free differential gauge for all air and non-corrosive gas installations
• Industrial grade die-cast aluminum case
• Extreme temperature tolerance with o-ring seal
• Easily accessible re-zero adjustment screw
• 2% full scale accuracy*
• 3 mounting adapters with screws included, other mounting accessories also available
• 5 year warranty

Applications

Low pressure and differential monitoring for air and non-combustible gases including filters, blowers, vacuums, air handlers and clean rooms

Additional Information

Dial4″ (100mm), white aluminum with black markings

CaseDie-cast black aluminum

LensPolycarbonate lens with UV Protection

RingThreaded die-cast black aluminum

Connection1/8″ NPTF high low pressure taps, side back

MovementResistance-free and magnetic

PointerAluminum, anodized black

Over-pressure LimitMaximum pressure of 14.5 psi / 100 kPa

Ambient / Process Temperature-40°F to 140°F (-40°C to 60°C), 14°F to 140°F (-10°C to 60°C)

Accuracy±2% of full scale value*

Enclosure RatingIP67

WarningThis product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

NotePFD to only be mounted in a vertical position
