Description

Product Description

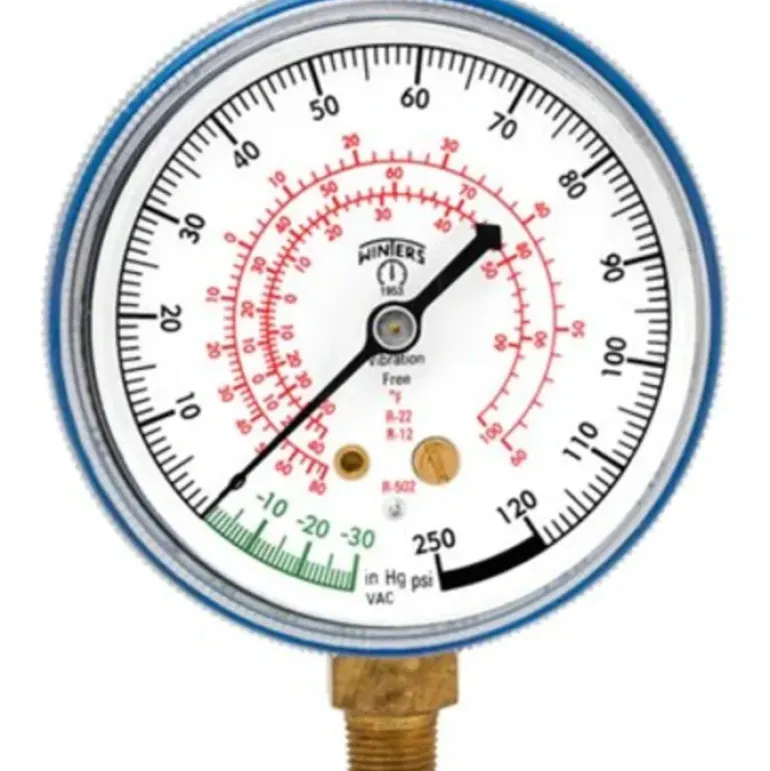

Winters Instruments – PFG1735

Features

• 2.5” (63mm) to 6” (150mm) durable gauges
• 2.5” (63mm) dial have a blue and red coloured case for easy identification
• Dual scale (psi/°F)
• Flutterless movement on the 2.5” (63mm)
• Chlorofluorocarbon (CFC) temperature scales (R-12, R-22 R-502)
• Brass internals
• 1/4” NPT standard
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

Refrigeration equipment and refrigeration recovery equipment

Additional Information

Dial2.5” (63mm), 4” (100mm), 6” (150mm): White aluminum

Case2.5” (63mm): Plastic, colour coded, blue for low pressure and red for high pressure, 4” (100mm), 6” (150mm): Steel, painted black

Lens2.5” (63mm): Plexiglass, threaded, 4” (100mm), 6” (150mm): Glass

Ring4” (100mm): Brass, polished,

Connection1/8” NPT or 1/4” NPT standard

Restrictor ScrewStandard

Recalibrator ScrewStandard

Bourdon Tube2.5” (63mm): Phosphor bronze, vibration free (flutterless movement), 4” (100mm), 6” (150mm): Phosphor bronze

PointerAluminum, anodized black

Welding#50 tin solder

Over-Pressure Limit25% of full scale value

Scalepsi/°F (R-12/R-22/R-502)

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 158°F (-40°C to 70°C)

Accuracy2.5” (63mm): ±2% of full scale, 4” (100mm), 6” (150mm): ±1% ANSI/ASME Grade 1A

Enclosure RatingIP52
