Description

Product Description

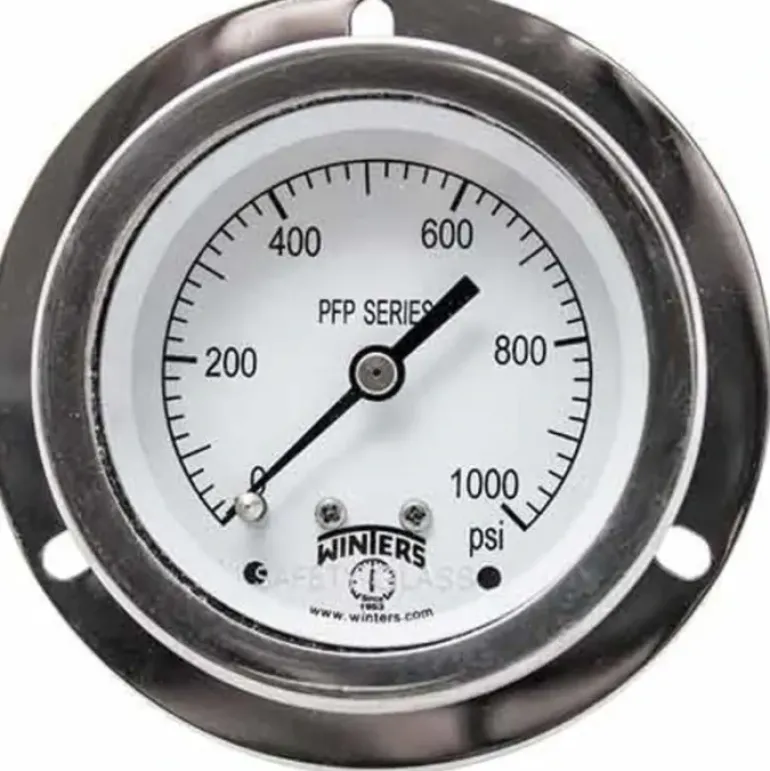

Winters Instruments – PFP3795R1

Features

• Liquid filled stainless steel case protects against extreme vibration and pulsation
• Lower back mount with front flange for panel mounting
• Bayonet ring
• Dual and single scale available (psi/kPa psi only)
• Stainless steel wetted parts
• Restricted orifice standard on dual scale (optional on single scale)
• Safety glass
• ASME B40.100 compliant (EN837-1 available)
• RoHS compliant
• CRN registered
• 5 year warranty

Applications

Outdoor and severe ambient and process conditions|Use where harmful vibration and pulsation are present|Hydraulic equipment, oil field equipment, pumps, compressors and process systems

Additional Information

Dial2.5” (63mm) white aluminum with black and red markings

CaseAISI 304 SS

LensSafety glass

RingAISI 304 SS

Socket316L SS welded one-piece socket

Connection1/4” NPT

Bourdon Tube316L SS, drawn seamless

Movement304 SS

PointerAluminum, anodized black

WeldingLaser welded socket to case

Fill LiquidGlycerin

Over-Pressure Limit25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)

Fill PlugBuna N (silicone rubber option)

Lens Ring Gasket Buna N (silicone rubber option)

Working PressureMaximum 75% of full scale value

Ambient TemperatureDry: -40°F to 250°F (-40°C to 120°C), Glycerin filled: -4°F to 150°F (-20°C to 65°C)

Process Temperature-40°F to 250°F (-40°C to 120°C)

Accuracy±1.5% of full scale

Enclosure RatingNEMA 4X/IP66, EN60529-1 (IEC529-1)
