Description

Product Description

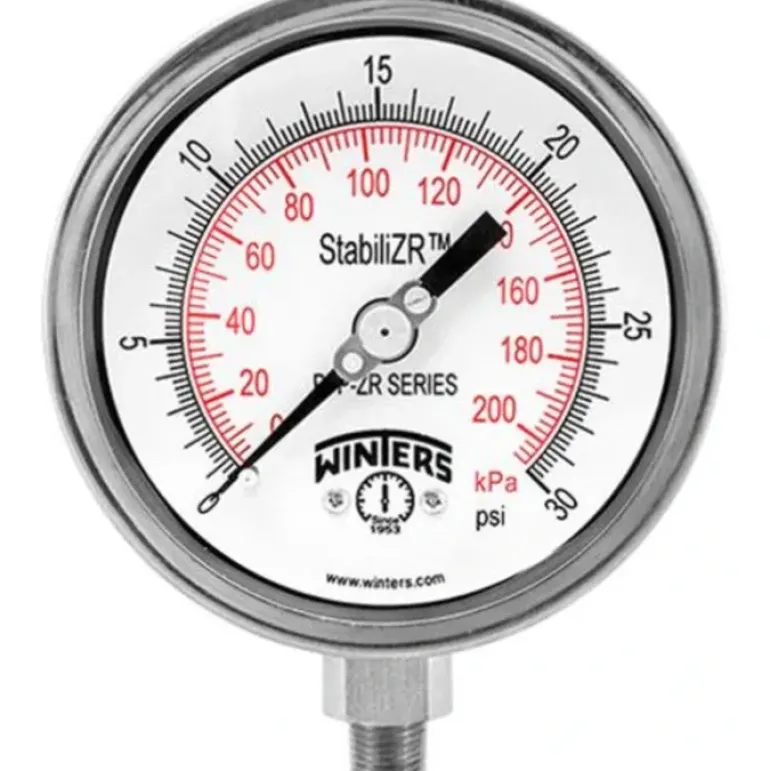

Winters Instruments – PFQ915ZRR1

Features

• StabiliZR® dampened movement minimizes effects of pulsation and vibration without liquid filling (flutterless pointer)
• Restricted orifice standard on dual scale
• Crimp-on bezel
• Brass internals
• Dual scale (psi/kPa)
• U-Clamps and front flanges for panel mounting
• ASME B40.100 compliant (EN837-1 available)
• CRN registered
• 5 year warranty

Applications

• Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
• Use where harmful vibration and pulsation are present

Additional Information

Dial2.5” (63mm), 4” (100mm), 6″” (150mm) white aluminum with black and red markings

CaseAISI 304 SS (dry)

LensPolycarbonate

Ring304 SS (crimped on)

SocketBrass with restricted orifice (dual scale only)

Connection1/4” NPT

Bourdon TubeBronze

MovementBrass with StabiliZR®️ dampened movement (silicone in sealed chamber)

PointerAnodized black aluminum

Over-pressure Limit25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,500 psi (10,342 kPa)

Socket GasketBuna N for two-piece internal socket seal

Fill PlugBuna N

Lens Ring GasketSilicone Rubber

Working pressure75% of full scale value

Ambient Temperature-76°F to 200°F (-60°C to 93°C)

Process Temperature-40°F to 200°F (-40°C to 93°C)

Accuracy±1.5% of full scale value

Enclosure RatingIP65
