Description

Product Description

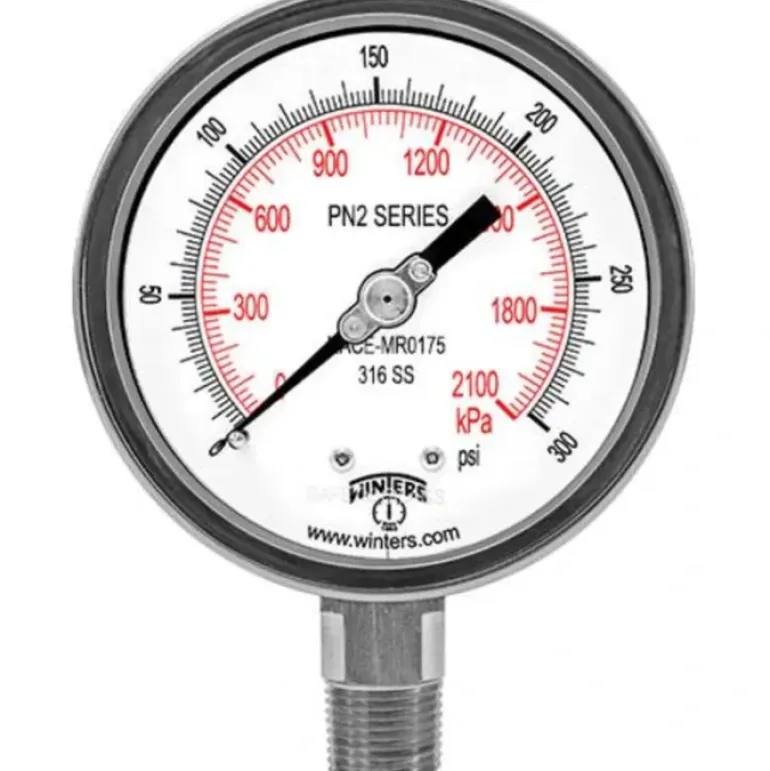

Winters Instruments – PN21038N

Features

• Designed for sour gas applications requiring NACE Standards MR0175-2002 (NACE Standards MR0103-2003 available)
• Glycerin and H2O filled case
• Blow out back plug standard
• Under and overload stops
• Wetted parts meet hardness requirements
• ASME B40.100 compliant (EN837-1 compliant)
• RoHS compliant
• CRN registered
• 5 year warranty

Applications

Sour gas applications requiring gauges that meet NACE International Standards

Additional Information

Dial4” (100mm) and 6″ (150mm) aluminum with black and red markings

Case304 SS

LensLaminated safety glass

Ring304 SS, bayonet

Socket316L SS (optional restrictor screw)

Connection1/4” or 1/2” NPT, bottom or back

Bourdon Tube316L SS

Movement304 SS with under and overload stops

PointerAluminum, anodized black, micrometer adjustable

Fill LiquidGlycerin and H2O filled case

Over-Pressure Limit25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)

Ambient/Process TemperatureDry: -40°F to 250°F (-40°C to 120°C), Glycerin Filled: -4°F to 150°F (-20°C to 65°C)

Accuracy±1% ANSI/ASME Grade 1A

Enclosure RatingIP66
