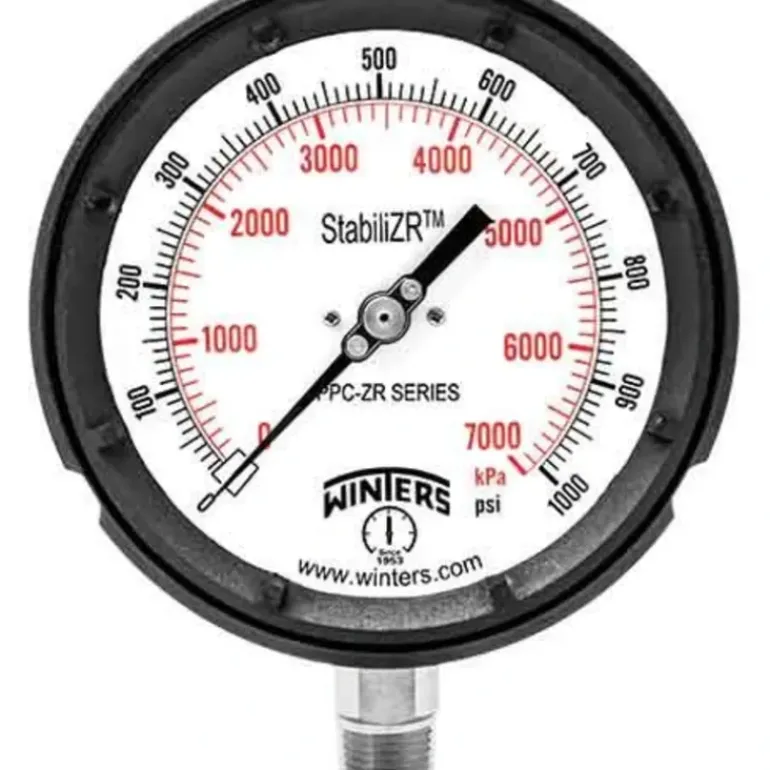

Winters Instruments PPC5136ZR Ppc-Zr Stabilizr® Process Gauge – One-stop shop for professional tools and equipment.

Description

Product Description

Winters Instruments – PPC5136ZR

Features

• StabiliZR®️ dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges
• Solid phenolic front and polypropylene pressure relief back safety
• case
• ±0.5% accuracy
• Stainless steel full rotary movement
• Micrometer adjustable pointer for ease in calibration
• Under and overload stops
• 316L stainless steel or brass wetted parts standard
• Restricted orifice standard on dual scale (optional on single scale)
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

• Ideally suited for process, chemical, petroleum and power industries
• Suitable for non-clogging corrosive media
• Used where operator safety is a requirement
• Processes where pulsation and vibration exist

Additional Information

Dial(For Stainless Steel Internals)4.5” (115mm) white aluminum with black and red markings

Case(For Stainless Steel Internals)Black phenolic, with pressure relief back, solid front, integral back flange

Solid Wall(For Stainless Steel Internals)Phenolic

Pressure Relief Back(For Stainless Steel Internals)Polypropylene

Window(For Stainless Steel Internals)Polycarbonate

Ring(For Stainless Steel Internals)Phenolic

Pointer(For Stainless Steel Internals)Aluminum, anodized black, micrometer adjustable

Socket(For Stainless Steel Internals)316L SS

Connection(For Stainless Steel Internals)1/4” NPT or 1/2” NPT standard, bottom or back

Bourdon Tube(For Stainless Steel Internals)316L SS, drawn seamless

Movement(For Stainless Steel Internals)304 SS with under and overload stops

Gasket Materials(For Stainless Steel Internals)Dry glycerin filled gauges: Black NBR, Silicone filled gauges: Brown NBR

Welding(For Stainless Steel Internals)TIG

Over-pressure Limit (For Stainless Steel Internals)25% for pressures below 1,500 psi (10,341 kPa), 15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,700 psi (59,984 kPa)

Working Pressure(For Stainless Steel Internals)Maximum 75% of full scale value

Ambient Temperature(For Stainless Steel Internals)Dry: -40°F to 250°F (-40°C to 120°C), Glycerin Filled: -4°F to 150°F (-20°C to 65°C)

Process Temperature(For Stainless Steel Internals)-40°F to 250°F (-40°C to 120°C)

Accuracy(For Stainless Steel Internals)±0.5% ANSI/ASME Grade 2A

Enclosure Rating(For Stainless Steel Internals)IP65

Warning(For Stainless Steel Internals)N/A

Dial(For Brass Internals)4.5” (115mm) white aluminum with black and red markings

Case(For Brass Internals)Black phenolic, with pressure relief back, solid front, integral back flange

Solid Wall(For Brass Internals)Phenolic

Pressure Relief Back(For Brass Internals)Polypropylene

Window(For Brass Internals)Polycarbonate

Ring(For Brass Internals)Phenolic

Pointer(For Brass Internals)Aluminum, anodized black, micrometer adjustable

Socket(For Brass Internals)OT 58 brass

Connection(For Brass Internals)1/4” NPT or 1/2” NPT standard, bottom or back

Bourdon Tube(For Brass Internals)Phosphor bronze

Movement(For Brass Internals)304 SS with under and overload stops

Gasket Materials(For Brass Internals)Dry glycerin filled gauges: Black NBR, Silicone filled gauges: Brown NBR

Welding(For Brass Internals)Silver alloy

Over-pressure Limit (For Brass Internals)25% for pressures below 1,500 psi (10,341 kPa), 15% for pressures 1,500 psi to 8,700 psi (10,341 kPa to 59,984 kPa), 10% for pressures above 8,700 psi (59,984 kPa)

Working Pressure(For Brass Internals)Maximum 75% of full scale value

Ambient Temperature(For Brass Internals)Dry: -40°F to 250°F (-40°C to 120°C), Glycerin Filled: -4°F to 150°F (-20°C to 65°C)

Process Temperature(For Brass Internals)-40°F to 150°F (-40°C to 65°C)

Accuracy(For Brass Internals)±0.5% ANSI/ASME Grade 2A

Enclosure Rating(For Brass Internals)IP65

Warning (brass internals only)(For Brass Internals)Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
