Description

Product Description

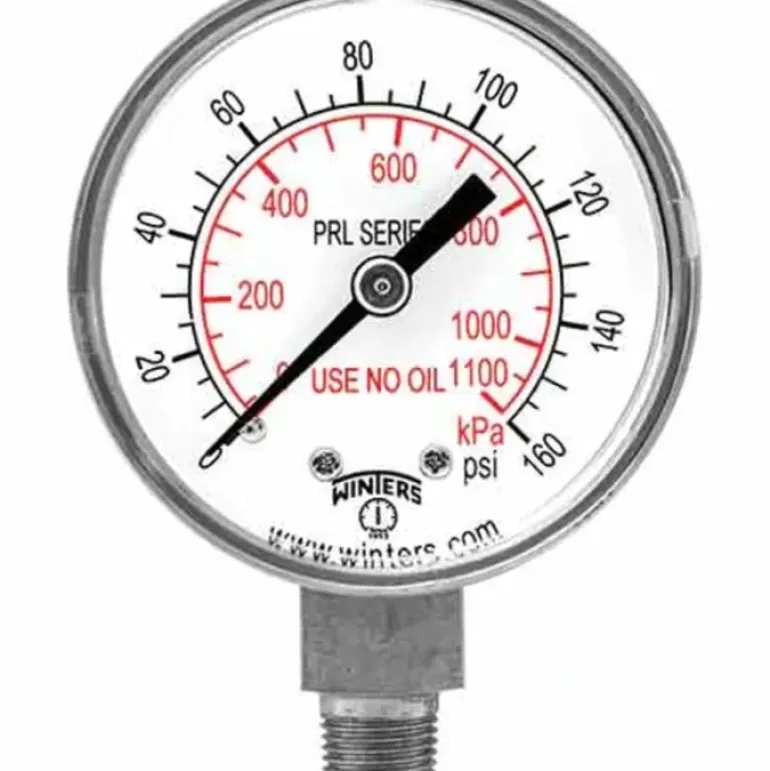

Winters Instruments – PRL011

Features

• Small diameter, all stainless steel gauge
• 1.5” (40mm) and 2” (50mm) dials
• Full view snap-in lens
• Back and bottom connection
• ASME B40.100 compliant
• RoHS compliant
• CRN registered
• 5 year warranty

Applications

Regulators, valve positioners and actuators that require a reliable and corrosion-resistant pressure gauge

Additional Information

Dial1.5” (40mm), 2” (50mm) white aluminum with black and red markings

Case304 SS

LensAcrylic, snap-in type

Socket316 SS

Connection1/8” NPT or 1/4” NPT standard

Bourdon Tube316 SS

Movement304 SS

PointerAluminum, painted black

WeldingSilver alloy

Over-Pressure Limit25% of full scale value

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)

Accuracy±2.5% of full scale

Enclosure RatingIP52
