Description

Product Description

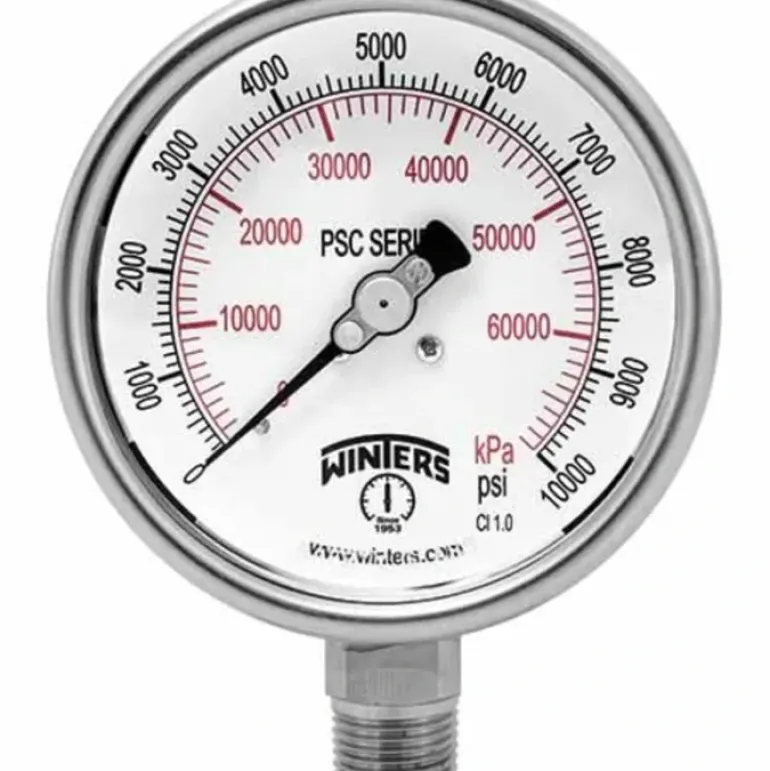

Winters Instruments – PSC366

Features

• Solid front blowout back for the ultimate in gauge safety
• Full rotary movement and micrometer pointer for ease in calibration
• Overload stop
• Stainless steel case, socket and internals
• Safety glass lens
• Restrictor orifice standard
• ASME B40.100 (EN837-1 available)
• RoHS compliant
• CRN registered
• 5 year warranty

Applications

Used where operator safety is a must

Additional Information

Dial4” (100mm), 4.5” (115mm), 6” (150mm), white aluminum with black and red markings

Case304 SS case with blowout back

Lens4” (100mm), 6” (150mm): Laminated safety glass, 4.5” (115mm): Tempered safety glass

RingSS bayonet

Socket316L SS

Connection1/4” or 1/2” NPT bottom

Bourdon Tube316L SS

Movement304 SS with overload stop

PointerAluminum, anodized black, micrometer adjustable

Over-Pressure Limit25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)

Accuracy4” (100mm), 6” (150mm): ±1% ANSI/ASME Grade 1A, 4.5” (115mm): ±0.5% ANSI/ASME Grade 2A

Enclosure Rating4″ (100mm), 6″ (150mm): IP67, EN60529-1 (IEC529-1), 4.5″ (115mm): IP65, EN60529-1 (IEC529-1)
