Description

Product Description

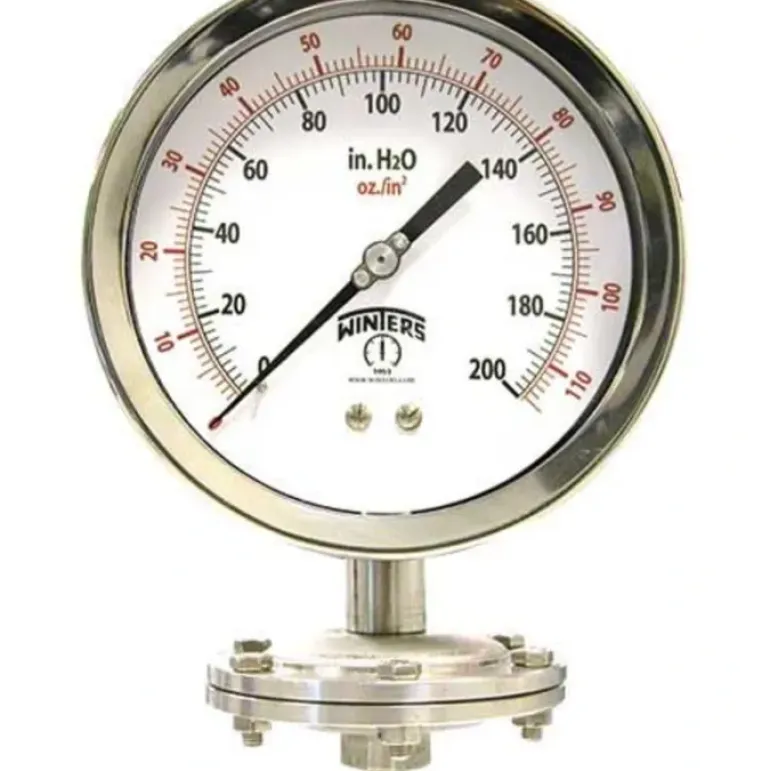

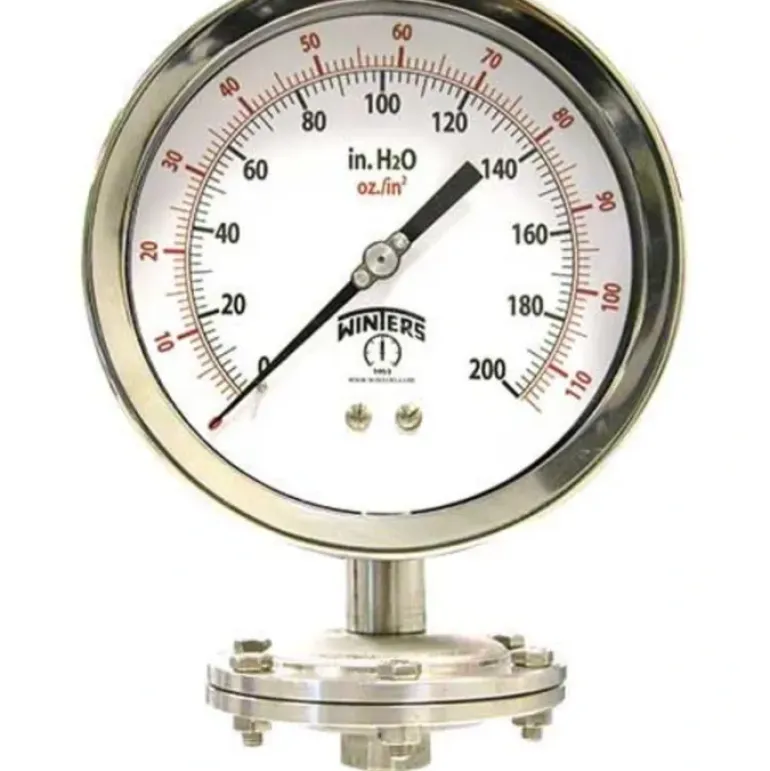

Winters Instruments – PSG4305

Features

• A combination pressure gauge and diaphragm seal forming one unique instrument that measures low pressures where protection from the process media is required
• Bottom connection only
• All stainless steel construction
• A variety of materials available
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

• Used for low pressure corrosive media where diaphragm seal protection is needed
• Processes where low or high temperature will affect seal fill fluid

Additional Information

Dial4” (100mm), 6” (150mm) white aluminum with black markings

Case304 SS

Upper FlangeSS (neck and base movements)

Lower Flange316L SS bottom connection

LensAcrylic

Connection1/2” NPTM bottom (female optional)

Diaphragm Element316 SS, 316 SSl PTFE lined, (Tantalum option)

MovementAll SS – Push rod / connecting link and segment

PointerAdjustable pointer – aluminum

Wetted Parts316 SS (other materials available upon request)

Ambient Temperature-13°F to 150°F (-25°C to 65°C)

Process Temperature212°F (100°C) Maximum

Accuracy±1.5% of full scale

Enclosure RatingIP54
