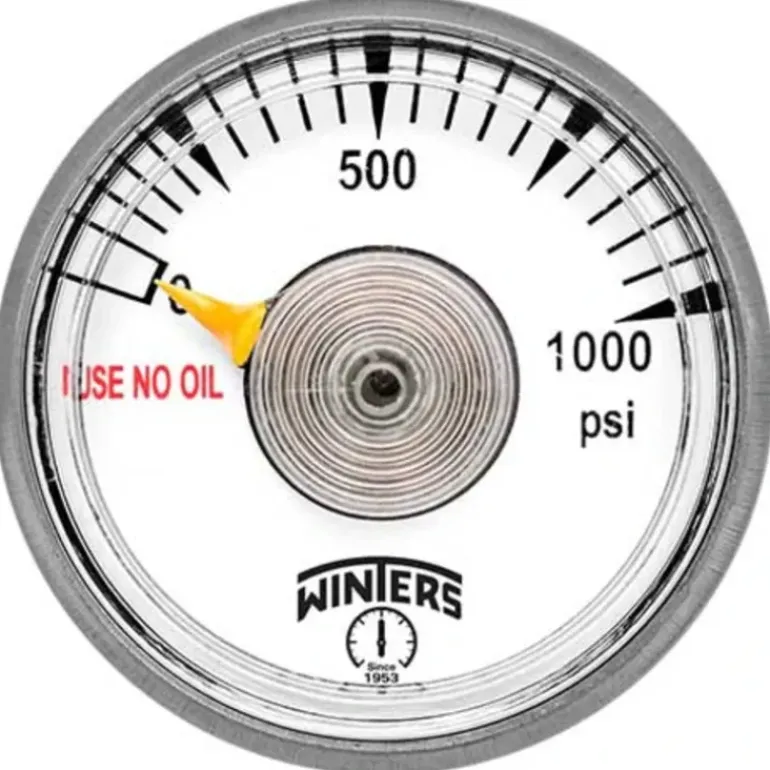

Winters Instruments PSP10160 Psp High-Volume Oem Spiral Tube Pressure Gauge – One-stop shop for professional tools and equipment.

Description

Product Description

Winters Instruments – PSP10160

Features

• Reliable, small diameter, low profile gauge
• 1” (25mm) to 1.5” (40mm) sizes
• 1/8” NPT socket
• Direct drive (no linkages or hairsprings) eliminating premature failure from the gear and movement
• Safety over-pressure port on the lens
• “Use No Oil” for use in oxygen service
• ASME B40.100 compliant
• CRN registered
• UL listed for 1.25” and 1.5” gauges
• 5 year warranty

Applications

Commonly used on portable pneumatic equipment as compressors, hand-held sprayers, pressurized recreational guns, oxygen tanks and regulators, pumps and fire extinguishers

Additional Information

Dial1” (25mm), 1 1/8” (30mm), 1.25” (32mm) or 1.5” (40mm) white aluminum with black markings

Case1” (25mm:) Nickel plated brass, Others: 304 SS

LensPlexiglass

Spiral/Socket60 to 2,000 psi: Brass, 3,000 psi and above: 304 SS

Connection1/8” NPT standard, back

Pointer2,000 psi and below: Brass, 3,000 psi and above: 304 SS

Over-pressure Limit10% of full scale value, 25% fo full scale value (0-3,000 psi, UL404 listed)

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)

Accuracy±3-2-3% ANSI/ASME Grade B

Enclosure RatingIP65
