Description

Product Description

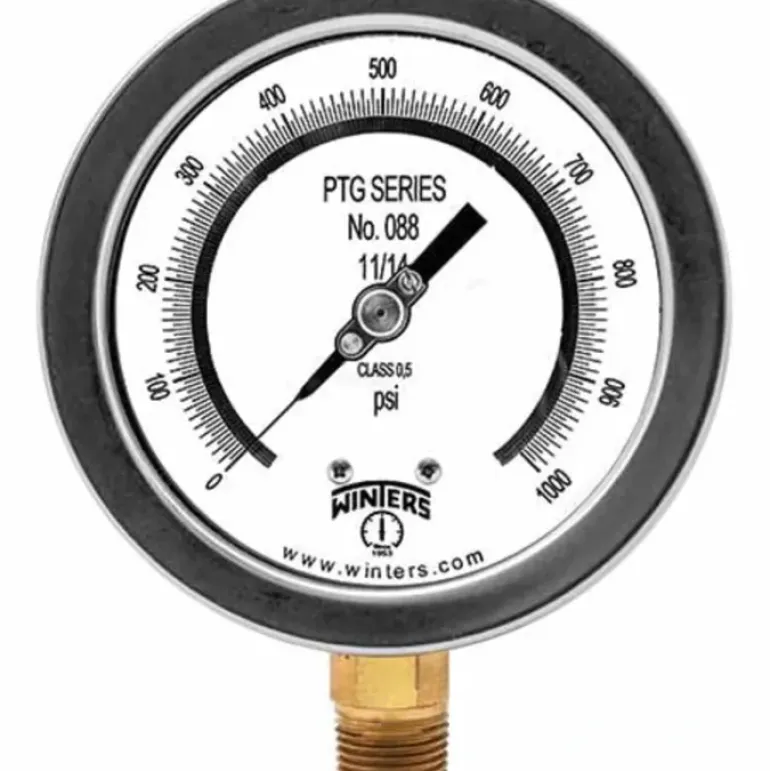

Winters Instruments – PTG4010

Features

• Highly accurate ±0.5% complete with calibration certificate traceable to NIST standards
• Mirrored anti-parallax dial
• Knife-edge pointer
• Protective carrying and storage case available
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

Designed to be used where accuracy and repeatability are of prime importance|Used in laboratories and instrument testing facilities

Additional Information

DialWhite aluminum with black markings and mirror band for precise instrument readings

CaseAISI 304 SS

Lens4″ (100mm): Polycarbonate, 6″ (150mm): Glass

RingAISI 304 SS

SocketBrass or Stainless Steel

Connection1/4” NPT or 1/2” NPT standard, bottom

Bourdon TubePhosphor bronze or Stainless Steel

MovementBrass or Stainless Steel

PointerAluminum, anodized black, micrometer adjustable, knife-edge

WeldingSilver alloy

Over-Pressure Limit30% of full scale value

Working PressureMaximum 75% of full scale value

Calibration Conditions68°F (±5.4°F), 20°C (±3°C) for ambient and process temperatures at atmospheric pressure

Ambient/Process Temperature-4°F to 150°F (-20°C to 65°C)

Accuracy±0.5% ANSI/ASME Grade 2A

Enclosure RatingIP65
