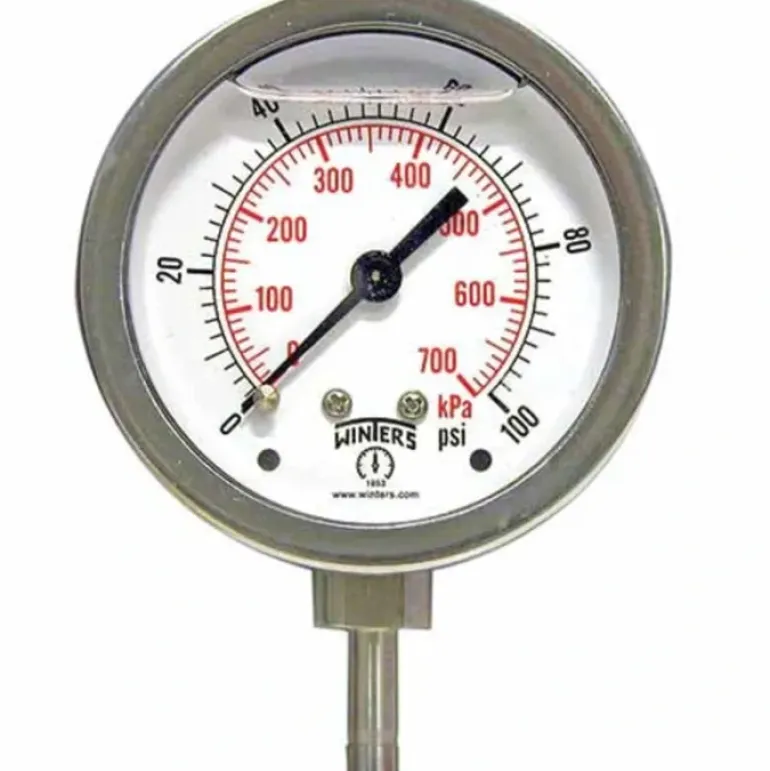

Winters Instruments PTS936R1-TS Pts Tube Stub Pressure Gauge – One-stop shop for professional tools and equipment.

Description

Product Description

Winters Instruments – PTS936R1-TS

Features

• Gauge designed to be used with most standard double ferrule tube fittings, such as Parker A-Lok®
• Heavy duty, stainless steel, liquid-filled gauge
• Back, bottom, or panel mount configurations
• ±1.5% accuracy
• Facilitates 360° orientation
• Elimination of leak point
• Teflon® free connection
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

Specifically designed to be utilized with tube fitting applications|Allows installation where space is limited|Used where PTFE free connection is needed|Used where gauge alignment is critical

Additional Information

Dial2.5” (63mm) aluminum with red and black markings

CaseGrade 304 SS

LensPolycarbonate

Ring304 SS, bayonet

Block316L SS

Socket316L SS

Connection1/4” Tube Stub

Bourdon Tube316L SS

Movement304 SS

PointerAluminum, anodized black

WeldingLaser welded socket to case

Fill LiquidGlycerin

Over-pressure Limit15% of full scale

Gasket MaterialsBuna N

Working Pressure75% of full scale

Ambient/Process TemperatureDry: -40°F to 200°F (-40°C to 93°C), Glycerin filled: -4°F to 150°F (-20°C to 65°C)

Accuracy±1.5% of full scale

Enclosure RatingIP66 per EN60529-1 (IEC529-1)
