Description

Product Description

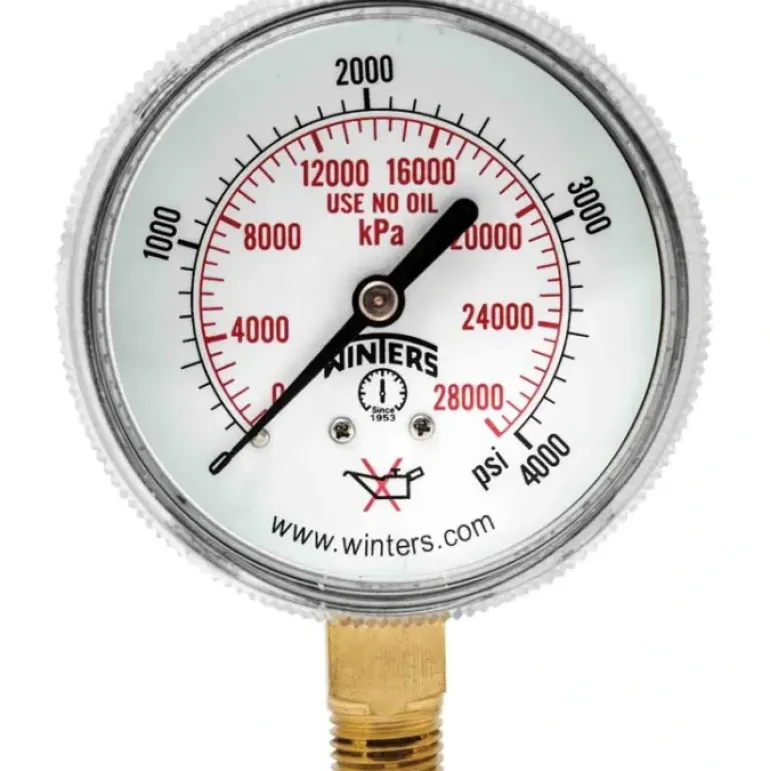

Winters Instruments – PWL2732

Features

• Economical, non-sparking brass case gauge
• 1.5” (40mm), 2” (50mm) and 2.5” (63mm) brass case
• UL listing on the 4,000 psi range
• “USE NO OIL” on dial
• Brass socket
• Threaded-on polycarbonate lens
• ASME B40.100 compliant
• CRN registered
• 5 year warranty

Applications

Welding tank regulators or manifolds, beverage dispensing regulators and other pressurized tanks|Used on the down stream side of a regulator and the high pressures are UL listed for measuring cylinder gases

Additional Information

Dial1.5″ (40mm), 2” (50mm), 2.5” (63mm) white aluminum with black and red markings

CaseBrass, polished

LensPolycarbonate, threaded

SocketBrass

Connection1.5″ (40mm): 1/8″ NPT bottom, 2″ (50mm), 2.5″ (63mm): 1/4” NPT bottom

Bourdon TubePhosphor bronze

MovementBrass

PointerAluminum, painted black

WeldingSilver alloy

Over-pressure Limit25% of full scale value

Working PressureMaximum 75% of full scale value

Ambient/Process Temperature-40°F to 150°F (-40°C to 65°C)

Accuracy±3-2-3% ANSI/ASME Grade B

Enclosure RatingIP52
