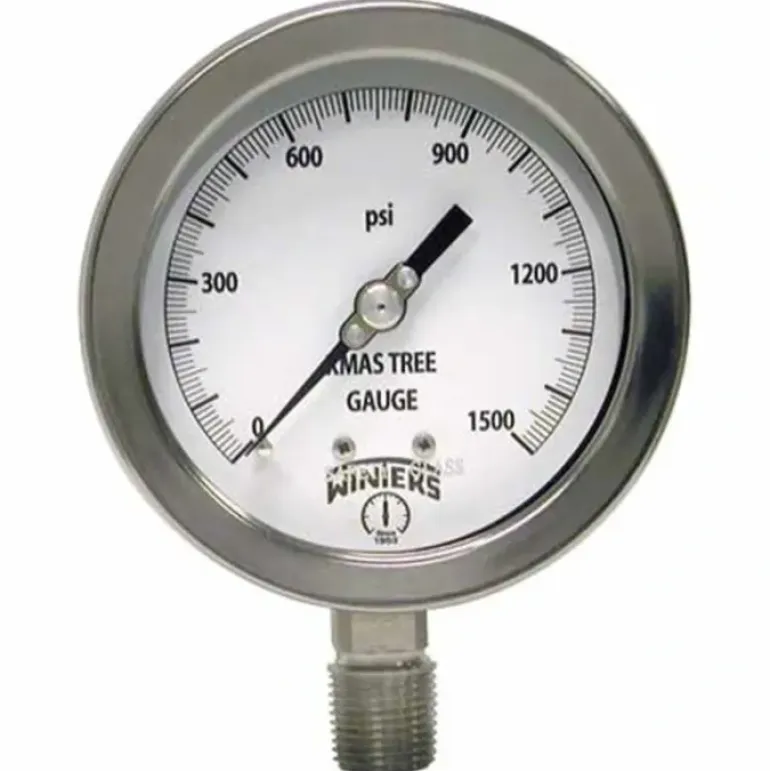

Winters Instruments PXT1134 Pxt Xmas Tree Gauge – One-stop shop for professional tools and equipment.

Description

Product Description

Winters Instruments – PXT1134

Features

• High quality, heavy duty gauge ideal for corrosive environments
• Stainless steel liquid filled gauge (dry optional)
• 1/2” NPT bottom
• Stainless steel wetted parts
• Heavy duty movement and Bourdon Tube
• Restrictor screw standard
• ASME B40.100 compliant
• 5 year warranty

Applications

Outdoor and severe ambient and process conditions|Where harmful vibration and pulsation are present|Designed to the specific needs of oil field equipment

Additional Information

Dial4” (100mm) white aluminum with black markings

CaseAISI 304 SS

LensSafety glass standard; acrylic optional

RingAISI 304 SS

SocketWelded, 316L SS

Connection1/2” NPT standard, 1/4” NPT available

Bourdon Tube316L SS, seamless drawn

Movement304 SS with under and overload stops

PointerAluminum, anodized black, micrometer adjustable

WeldingTIG

Fill LiquidGlycerin

Over-pressure Limit25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa)

Gasket MaterialEPDM

Working PressureMaximum 75% of full scale value

Ambient/Process TemperatureDry: -40°F to 200°F (-40°C to 93°C), Glycerin filled: -4°F to 150°F (-20°C to 65°C)

Accuracy±1% ANSI/ASME Grade 1A

Enclosure RatingIP66 per EN60529-1 (IEC529-1)
