Winters Instruments SOP159050N Sop Over Pressure Protector – One-stop shop for professional tools and equipment.

Description

Product Description

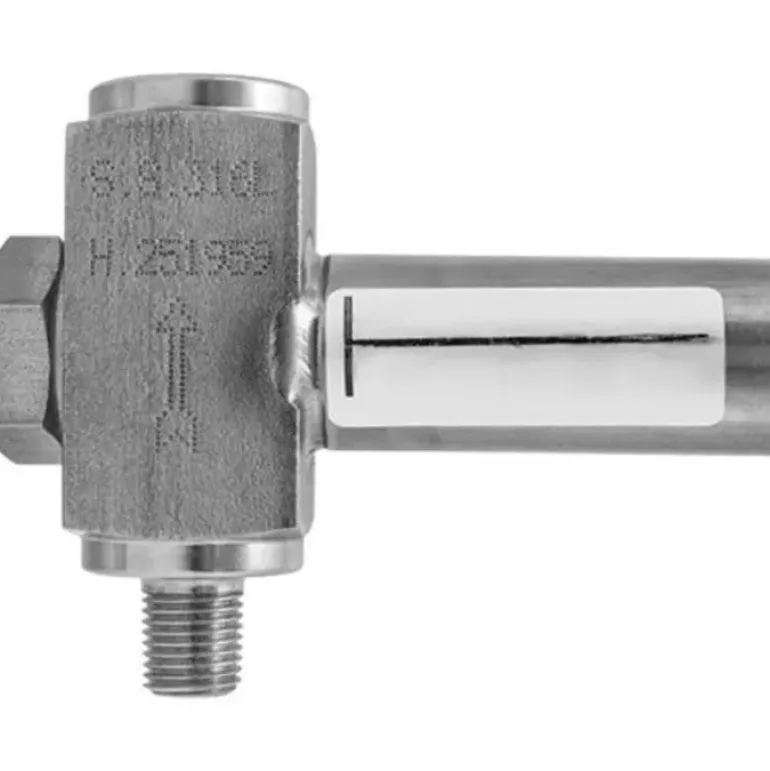

Winters Instruments – SOP159050N

Features

• Setpoint adjustments are made by manipulating an external adjusting screw and lock nut
• Automatically shuts off pressure to the instrument once the adjustable preset pressure is exceeded
• RoHS compliant
• CRN registered
• 5 year warranty

Applications

Utilized to protect pressure instruments against surges and pulsations|Available in Bellows and Piston Type

Additional Information

BodyBellows Type: 316 SS, Piston Type: 316 SS

Gasket FKM

Maximum Operating Pressure10,000 psi (68,950 kPa)

Temperature Rating-40°F to 248°F (-40°C to 120°C)

Connection1/4”NPTM x 1/4” NPTF or 1/2” NPTM x 1/2” NPTF
