Winters Instruments SSN529 Ssn Snubber / Ssn-Lf Lead Free Snubber – One-stop shop for professional tools and equipment.

Description

Product Description

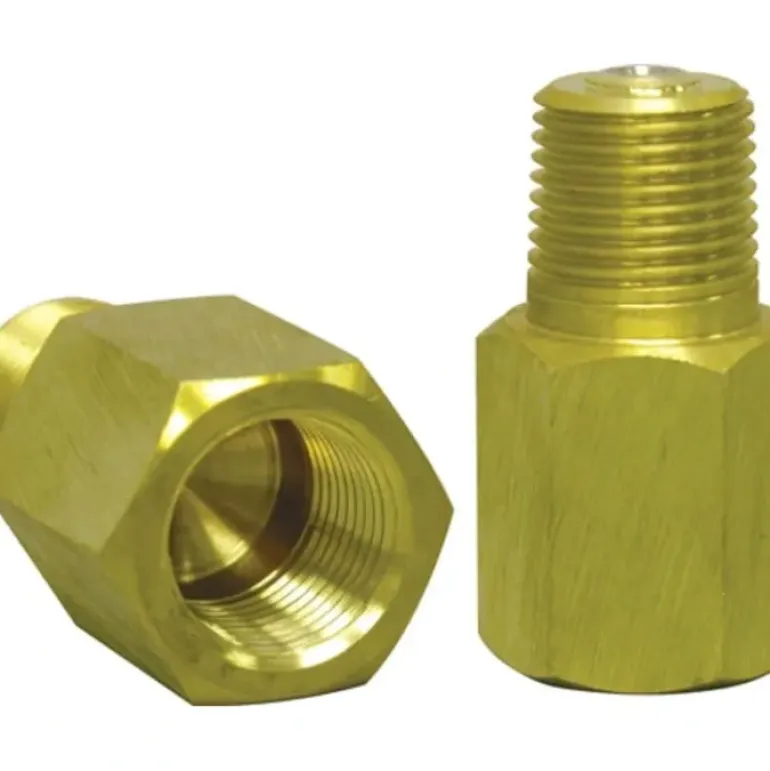

Winters Instruments – SSN529

Features

• Incorporates a sintered, porous 316 stainless steel snubbing element with a large surface area to ensure long term effectiveness
• Available in the three standard viscosity classifications of heavy oil, water and air
• Brass, lead free brass or stainless steel housings can be specified depending upon pressure media and operating pressure
• ASME B40.100 compliant
• RoHS compliant (SS snubber only)
• CRN registered
• 5 year warranty

Applications

To significantly lessen the damaging effects of pulsation on gauges, transducers, transmitters, manometers and pressure switches

Additional Information

Operating Temperature(For Stainless Steel)-320°F to 1,500°F (-195°C to 815°C)

Operating Pressure(For Stainless Steel) Maximum 20,000 psi (137,900 kPa)

Burst Pressure(For Stainless Steel) 60,000 psi (413,700 kPa)

Housing(For Stainless Steel) 316 SS

Snubbing Element(For Stainless Steel) Sintered, porous type 316 SS

Retainer(For Stainless Steel) 300 series SS

Warning (brass internals only)(For Stainless Steel)N/A

Operating Temperature(For Brass)-65°F to 650°F (-53°C to 343°C)

Operating Pressure(For Brass)Maximum 10,000 psi (68,950 kPa)

Burst Pressure(For Brass)30,000 psi (206,850 kPa)

Housing(For Brass)SSN: Brass, SSN-LF: Lead free brass

Snubbing Element(For Brass)Sintered, porous type 316 SS

Retainer(For Brass)300 series SS

Warning(For Brass)Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
