Winters Instruments THS32060F Ths Solar Digital Bi-Metal Thermometer – One-stop shop for professional tools and equipment.

Description

Product Description

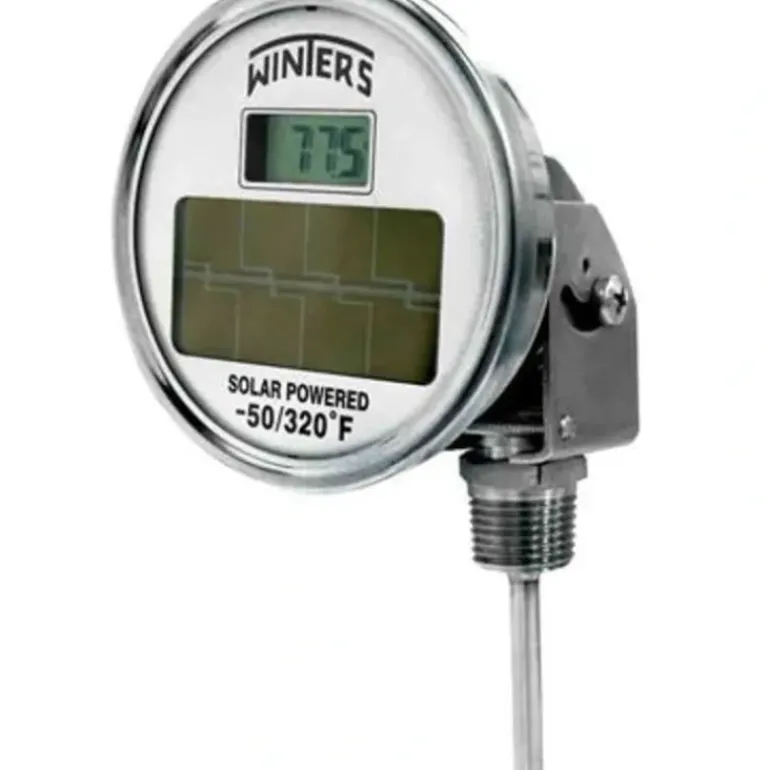

Winters Instruments – THS32060F

Features

• A solar powered digital thermometer that provides a local temperature reading to 1/10 of a degree
• 304 stainless steel case, stem and socket
• Hermetically sealed thermometer case
• Minimum required light 35 Lux
• Ceramic resistance sensing element
• 1/2” adjustable angle connection
• 4” (100mm), 6” (150mm) and 9” (230mm) stem lengths
• °F or °C scales available
• ASME B40.200 compliant
• RoHS compliant
• 5 year warranty

Applications

Temperature sensing for heating, ventilation, air conditioning, food processing, waste water, industrial processes or compressors

Additional Information

Dial3” (75mm)

Case304 SS

LensGlass (3mm thickness)

Ring304 SS, bezel, hermetically sealed

DisplayLCD

Stem304 SS, 0.25” (6mm) diameter, 2.5” (63mm) to 24” (600mm)

Connection1/2” NPT fully adjustable

SensorCeramic resistance

Lux Rating35 Lux

Ambient Temperature-4°F to 122°F (-20°C to 50°C)

Temperature Range-58°F to 320°F (-50°C to 160°C)

Read IntervalEvery 6 seconds

Accuracy±1%

Enclosure RatingNEMA4 / IP68
