Description

Product Description

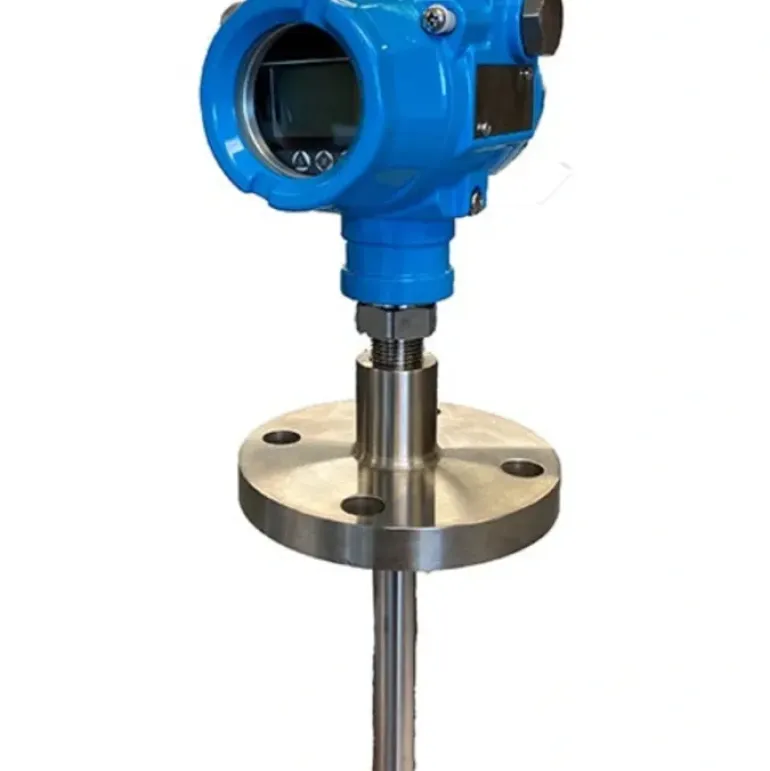

Winters Instruments – TY523002

Features

• Integrated temperature transmitter with ASIC signaling transmitter
• Explosion proof smart temperature transmitter for hazardous locations
• -50 to 400°C (-58/752°F ) measure range
• 0.5% accuracy
• Simple to operate 3-push button control
• HART® or Modbus communications available
• Low power option available
• Re-zero function for safe field calibration
• 5 year warranty

Applications

TY52 can be utilized and installed anywhere where temperature measurement is required. From Oil Gas installations to Power Generation, this product has a rugged design and is equipped with the communication protocols to meet all your day to day requirements

Additional Information

Output Signal4/20 mA, 2-wire / V

Sensor TypePT100 RTD

Measuring Range-50 to 400°C (-58/752°F )

LCD DisplayLCD display (standard) or without LCD display (optional)

Accuracy0.5% accuracy

Stability0.05% or 0.1°C / year

Temperature RangeWorking: -40/85°C (with display -20/70°C), -40/185°F (without display -4/158°F), Storage: -40/100°C (with display -20/70°C), -40/212°F (without display -4/158°F)

Working Humidity 0-95%

Pressure Connection1/2” NPTM, 1/2 GM or Flanged

HousingRugged die-cast aluminum housing, painted blue

Wetted Parts316 SS, 304 SS

Power Consumption500 mW @ 24 VDC, 20.8 mA (LCD); =493mW @ 24VDC, 20.55mA (without LCD)

Wake Up Time6 seconds

Vibration4g, 2…100Hz, According to IEC 60068-2-6

Available Temperature UnitsCelsius (oC), Fahrenheit (oF)

Protection ClassEMI, ESD, RFI, reverse polarity protected; Surge protection IEC1000-4-5

ApprovalsClass I, Division 1, Groups A, B, C D, T6… T1, Class I, Division 2, Groups A, B, C D, T4…T1 , Class II, Division 1, Groups E, F G, T80°C… T400°C, Class III

Protection ClassIP66
