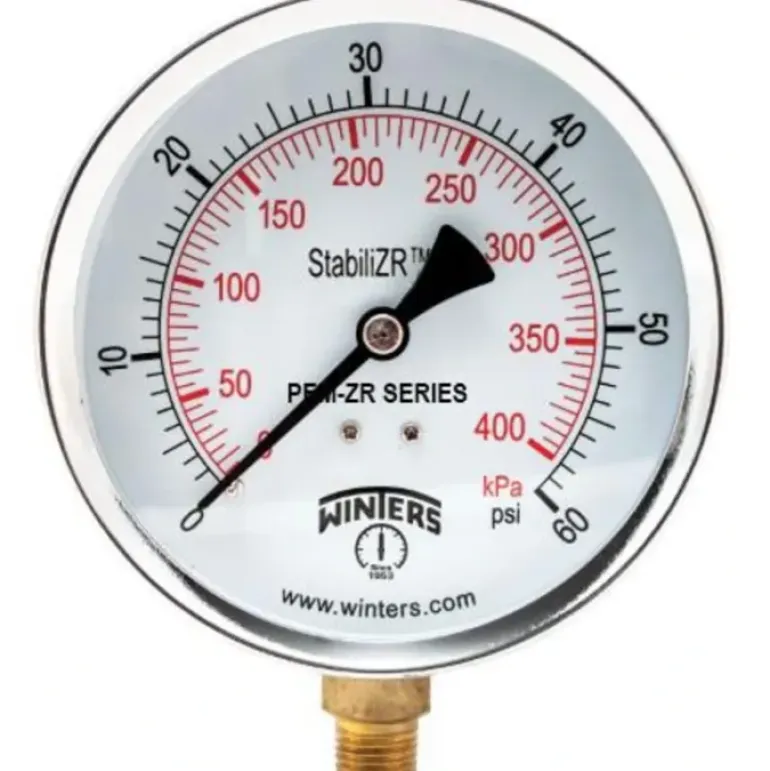

Winters Instruments ZR Pem-Zr Economy Stabilizr® Gauge – One-stop shop for professional tools and equipment.

Description

Product Description

Winters Instruments – ZR

Features

• StabiliZR® dampened movement minimizes effects of pulsation and vibration
• Most economical, all-purpose pressure gauge
• 1.5” (40mm) to 4” (100mm) sizes
• Friction bezel rings
• Black steel case
• Brass wetted parts
• ASME B40.100 compliant (EN837-1 available)
• ±3-2-3% accuracy
• CRN registered
• 5 year warranty

Applications

• General purpose gauge for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks and air compressors
• Suitable for non-clogging and non-corroding media

Additional Information

Dial1.5” (40mm), 2” (50mm), 2.5” (63mm), 4” (100mm) white aluminum with black and red markings

Case Steel, painted black (plastic available)

Lens1.5” (40mm), 2” (50mm), 2.5” (63mm): Acrylic 4” (100mm): Glass

Ring1.5” (40mm), 2” (50mm): Steel, painted black 2.5” (63mm), 4” (100mm): Steel, chrome plated

SocketBrass

Connection1/8” NPT or 1/4” NPT standard

Bourdon TubePhosphor bronze

MovementBrass, StabiliZR®️ dampened movement (silicone in sealed chamber)

PointerAluminum, black

WeldingSilver alloy

Over-Pressure Limit25% of full scale value

Working PressureMaximum 75% of full scale value

Ambient Temperature-76°F to 200°F (-60°C to 93°C)

Process Temperature-40°F to 150°F (-40°C to 65°C)

Accuracy±3-2-3% ANSI/ASME Grade B

Enclosure RatingIP52
